E-Bike Motors and Controllers – A High-Quality, Cost-Effective Choice

Assembled in Taiwan with Strict Quality Verification, Ensuring Stable Performance to Meet Diverse Riding Needs

e-bike_motor_1_1e-bike_motor_1_2
e-bike_motor_1_3

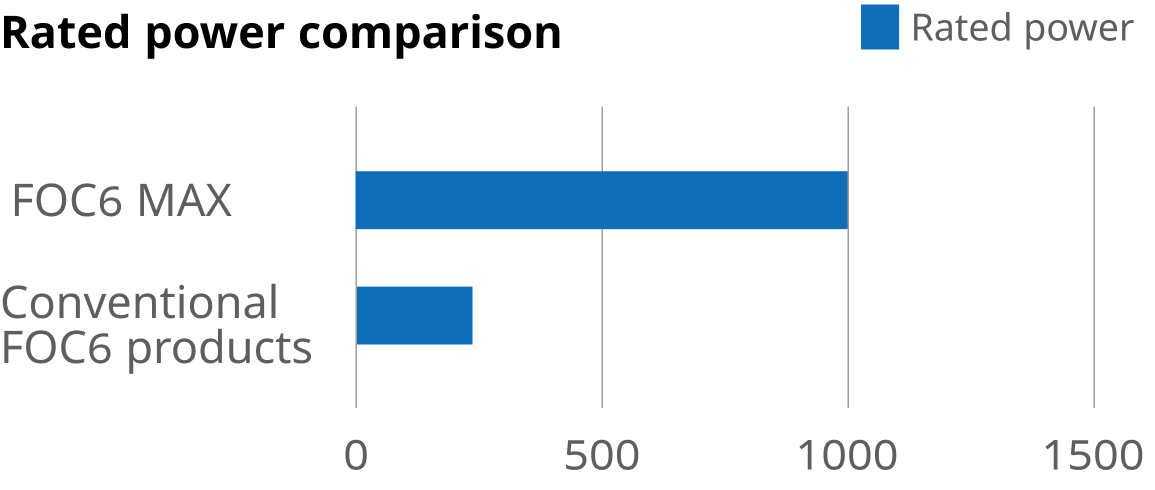

High Power Output System

e-bike_motor_1_4e-bike_motor_1_5

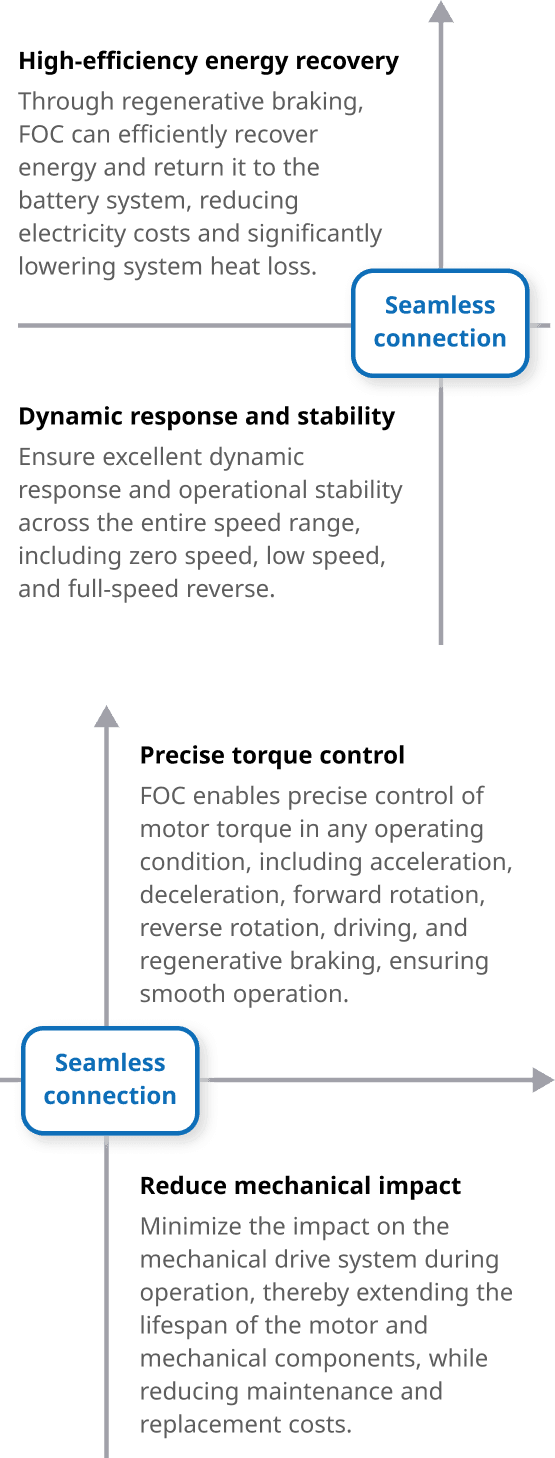

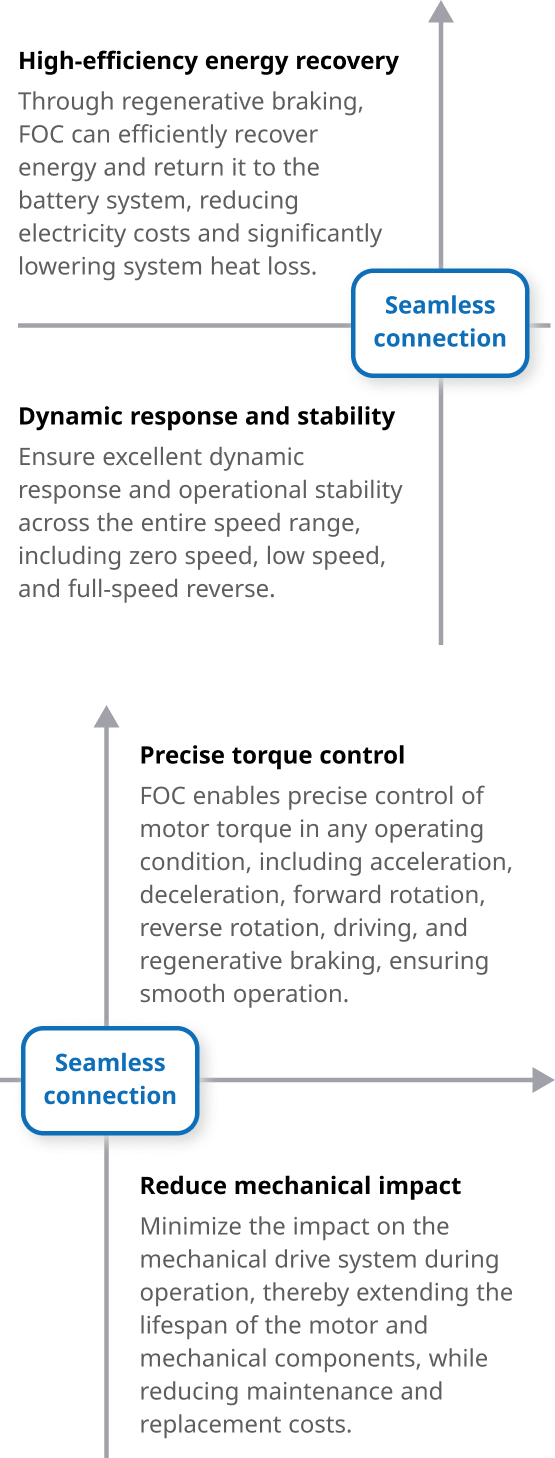

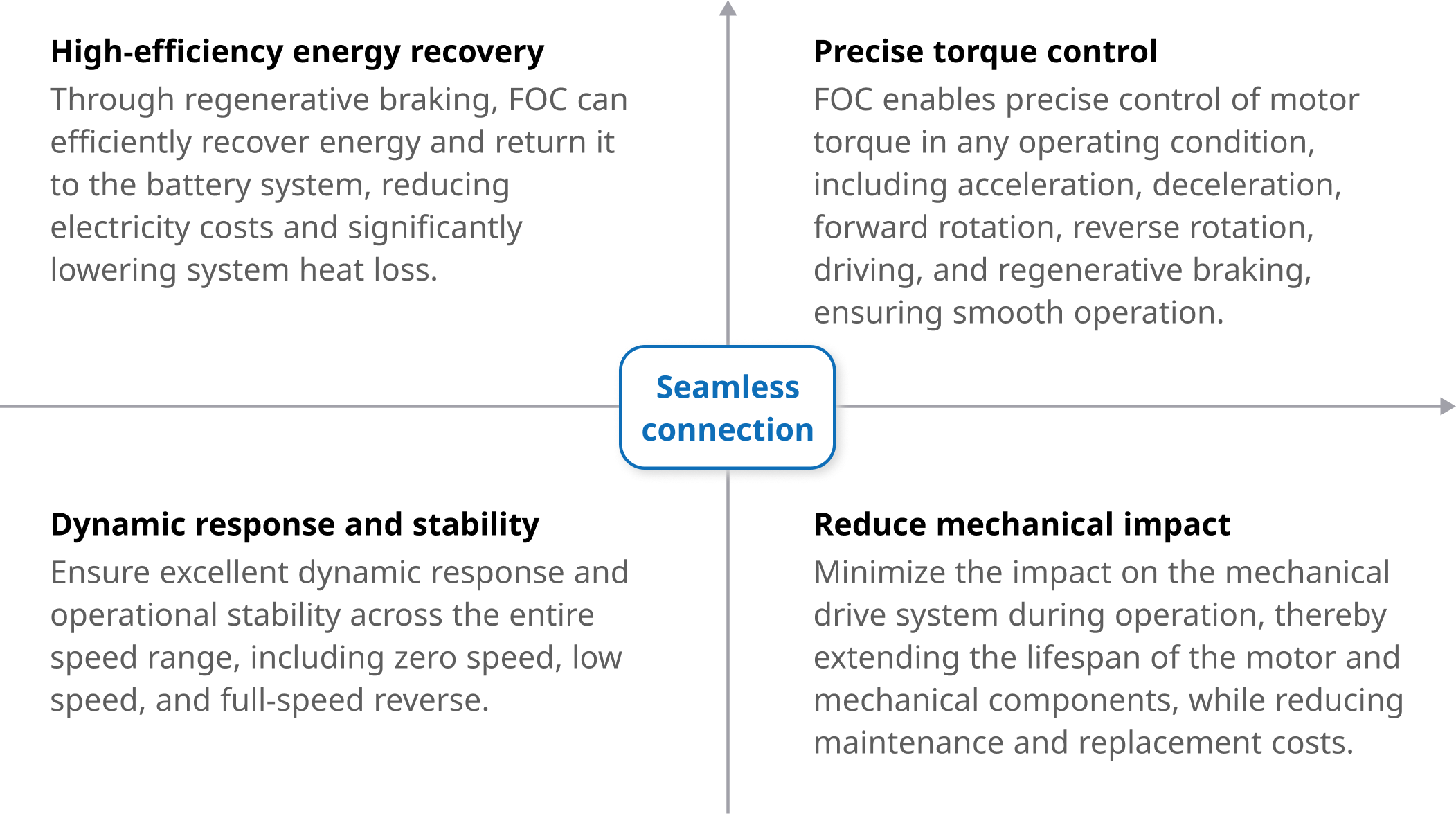

DMIV-Four-Quadrant Algorithm For Controller

e-bike_motor_2_1

Provide an efficient diagnostic system to troubleshoot issues and faults

e-bike_motor_3_1

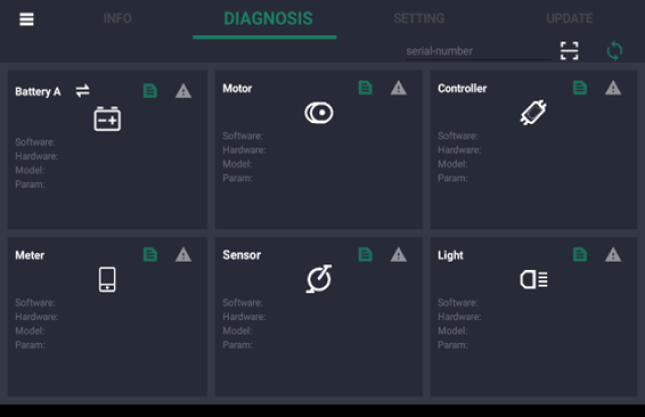

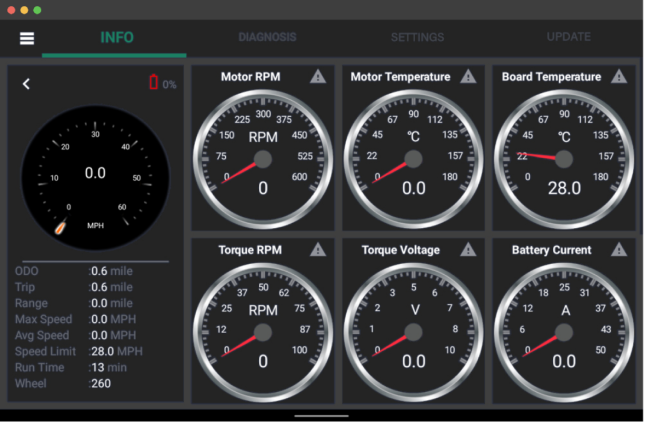

Diagnostic Platform

Technicians can detect any abnormalities or variations from interpreted error codes generated by the e-bike’s electronic control unit (ECU). These error codes provide valuable information about various system malfunctions, such as motor issues, battery problems, or sensor failures.

Wireless Connectivity

The onboard diagnostics (OBD) system allows technicians to communicate with the e-bike’s ECU wirelessly, retrieve relevant data, and perform firmware updates if required. To provide efficient customer support, the diagnostic system incorporates remote diagnostics capabilities. This allows technicians to remotely access the e-bike’s diagnostic data and provide real-time assistance to customers, reducing the need for physical troubleshooting and enhancing customer convenience.

e-bike_motor_3_2
e-bike_motor_3_3

Personalized Performance

The performance setting can be readily modified by bike shop experts to accommodate various riding requirements, resulting in the best possible cycling experience.

Motor

”The excellent coordination of all components, stable speed output, and smooth pedaling feel ensure the best riding experience in any road condition.”

e-bike_motor_icone-bike_motor_m270e-bike_motor_m520e-bike_motor_m1020e-bike_motor_r220e-bike_motor_r520
ModelM270M520M1020R220R520
Wheel Size20-2920-2920-2924/2620/26/700C/28
Rated Voltage36V/48V36V/48V36V/48V36V36-60V
Rated Power250W500W1000W250W500W
SpeedMAX 25 KMHMAX 32 KMHMAX 35 KMHFOC-12MAX 32 KMH
Max Torque70 N.M95 N.M140 N.M30 N.M45 N.M
ColorSilver/BlackSilver/BlackSliver/BlackSilver/BlackSilver/Black
Weight3.2 kg3.9 kg6.7 kg2.8 kg3.6 kg
e-bike_motor_icone-bike_motor_r720e-bike_motor_r1020e-bike_motor_r1520e-bike_motor_a320e-bike_motor_a720
ModelR720R1020R1520A320A720
Wheel Size20/26/700C/2820/26/700C/2820-242020
Rated Voltage36-60V36-60V36-60V24-48V24-60V
Rated Power750W1000W1500W300W750W
SpeedMAX 35 KMHMAX 40 KMHMAX 50 KMHFOC-12MAX 50 KMH
Max Torque55 N.M75 N.M120N.M40 N.M85N.M
ColorSilver/BlackSilver/BlackSliver/BlackCustomizedCustomized
Weight4.2 kg4.8 kg6.7 kg2.5 kg3.6 kg

Controller

”The controller, as the brain of the electric bicycle, precisely combines the motor's power with the sensor's sensitivity to provide you with the most suitable power”

e-bike_motor_icone-bike_motor_foc6e-bike_motor_foc12e-bike_motor_foc18
ModelFOC6FOC12FOC18
Nominal Voltage24V/36V/48V24V/36V/48V24V/36V/48V
Rated Power300W750W1000W
Limit Current12A27A40A
Control ModeFOCFOCFOC
Communication ProtocolCAN/UARTCAN/UARTCAN/UART
Water ProofIP67IP67IP67
Dimension79*46*2686*46*19124*49*30
StandardEN15194, EN16949, ULEN15194, EN16949, ULEN15194, EN16949, UL
