Compatible with Tools LCZ100 / LCZ300 / LRCZ300
Supports RTH-2TP / RTH-2P platforms | Compatible with LCZ100 / LCZ300 / LRCZ300 tools | Flexible disc quantity adjustment based on tray configuration

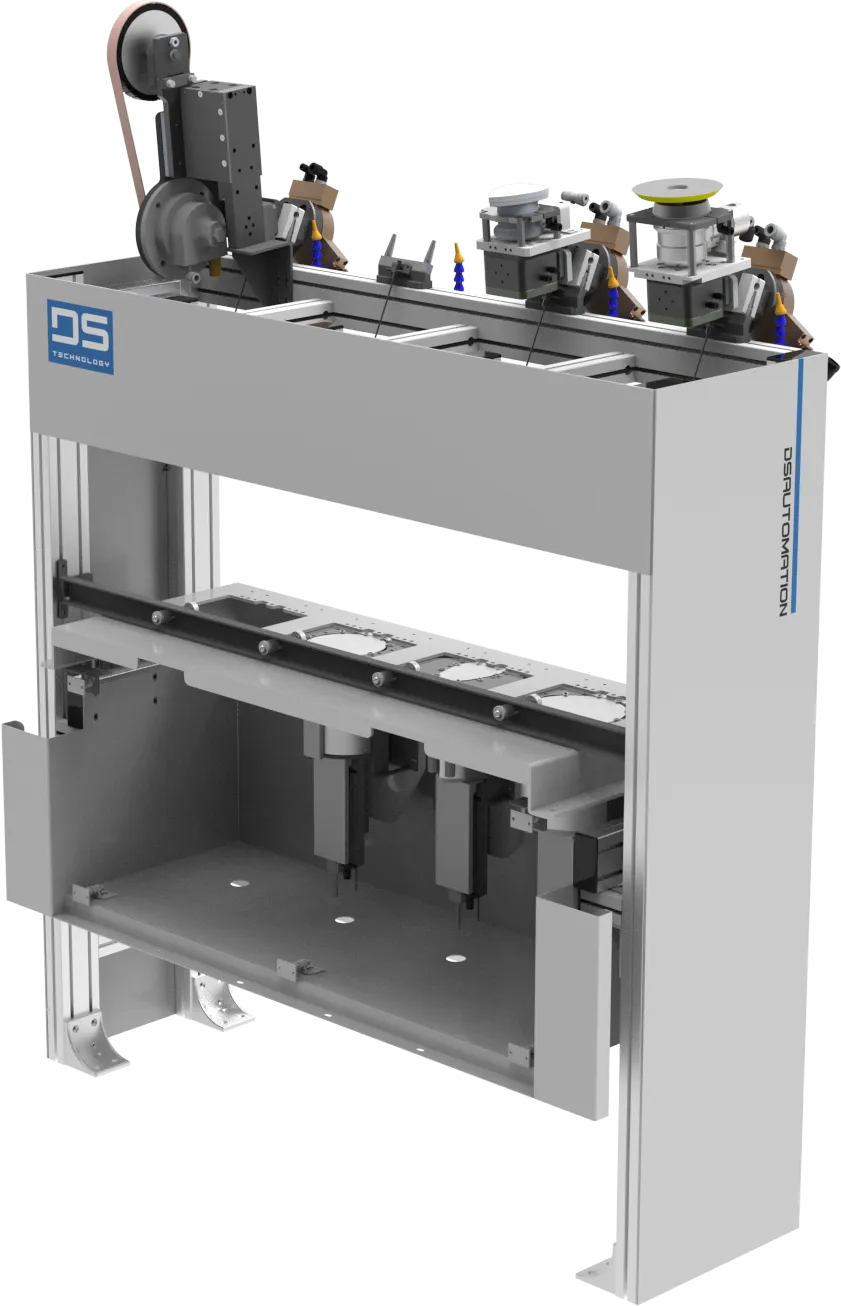

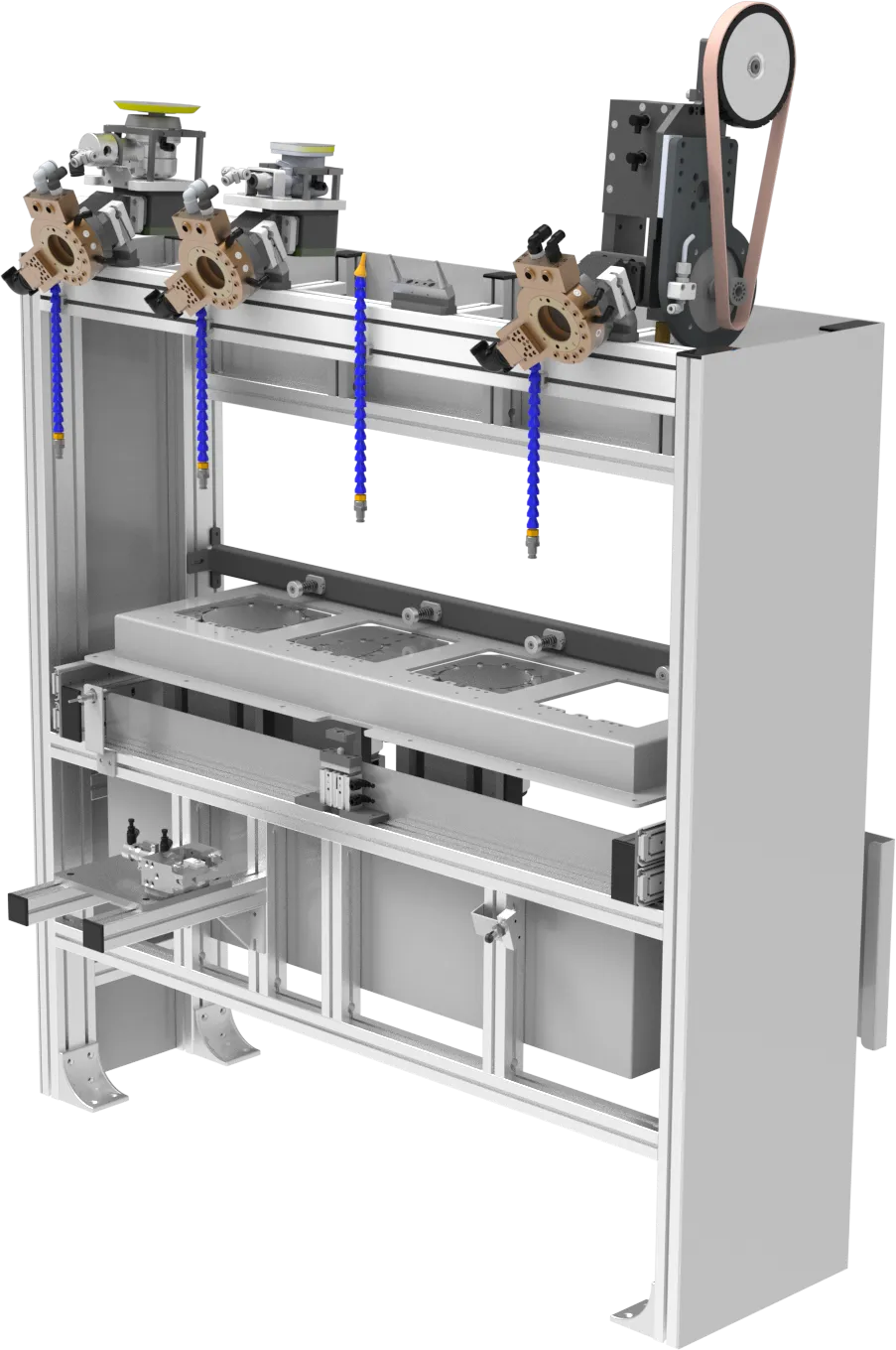

ASC4-RTH is an automated abrasive disc changeover system for handheld tools developed by DS Technology. Supports up to 4 different disc types/sizes by default, with optional expansion for additional specifications. The system features a patented peeling mechanism for stable removal of used discs and an easy-access external replacement structure for improved operational stability and maintenance convenience.
When integrated with a robotic Tool Changer, it enables fully automated tool and media replacement, supporting flexible material and tool combinations for enhanced process agility and productivity.
Purpose-built for RTH-2TP and RTH-2P robotic platforms, compatible with LCZ100, LCZ300, LRCZ300 compliant force sanding tools, using standard Hook & Loop (Velcro) fastening. Supports automatic replacement of common disc sizes such as 2”, 3”, 5”, 6” round, triangular, and rectangular shapes.
Automotive, motorcycle, bicycle, aerospace, medical, defense, hardware, semiconductor, 3C components, and other automated precision manufacturing fields
Depending on abrasive and tool setup; commonly processed materials include aluminum alloys, stainless steel, cast iron, plastics, and composites.
| Model | ASC4-RTH Automated Abrasive Disc Changeover System for Handheld Tools |
| System Type | Automated disc changeover module for handheld compliant force tools |
| Applicable Platform | RWH-3DF surface finishing platform |
| Compatible Tools | LCZ100, LCZ300, LRCZ300 |
| Supported Drive Types | Compatible with pneumatic and electric tools |
| Supported Abrasive Quantity | Flexible based on tray configuration; default 4 disc types, expandable |
| Compatible Abrasive Type | Hook & Loop (Velcro) |
| Compatible Abrasive Size | 2”, 3”, 5”, 6” round, triangular, rectangular, and other standard sizes |
| Changeover Method | Robotic Tool Changer automatically removes used abrasive discs and replaces with new, achieving fully automated changeover |
| Control Method | PLC or Robot I/O |
| Operating Air Pressure | 5–6 bar |
| Power Supply | 24V DC (TBC) |

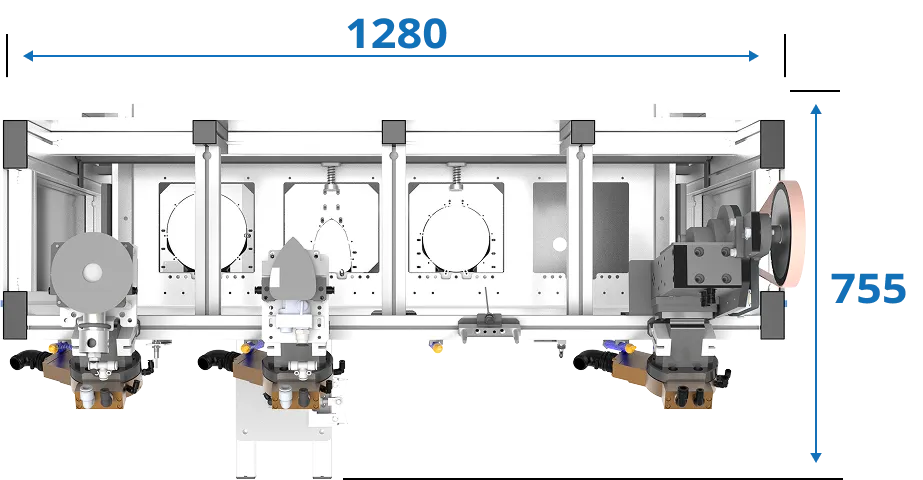

| External Dimensions | TBD |
| Abrasive Storage Capacity | 2 sheets (standard, depending on media thickness) |
| Installation Method | Installed within RTH-2TP and RTH-2P systems |
