RC Series
Good for small burrs on complex curved edges
Ultra-high speed and minimal compliance force, utilizing pneumatic control to handle ultra-small gaps. Supports highly sensitive radial compliance, ensuring precise surface finishing. Ideal for deburring small components.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ3/Milling Bur |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 2-10N |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 1.3kg (2.87lb) |

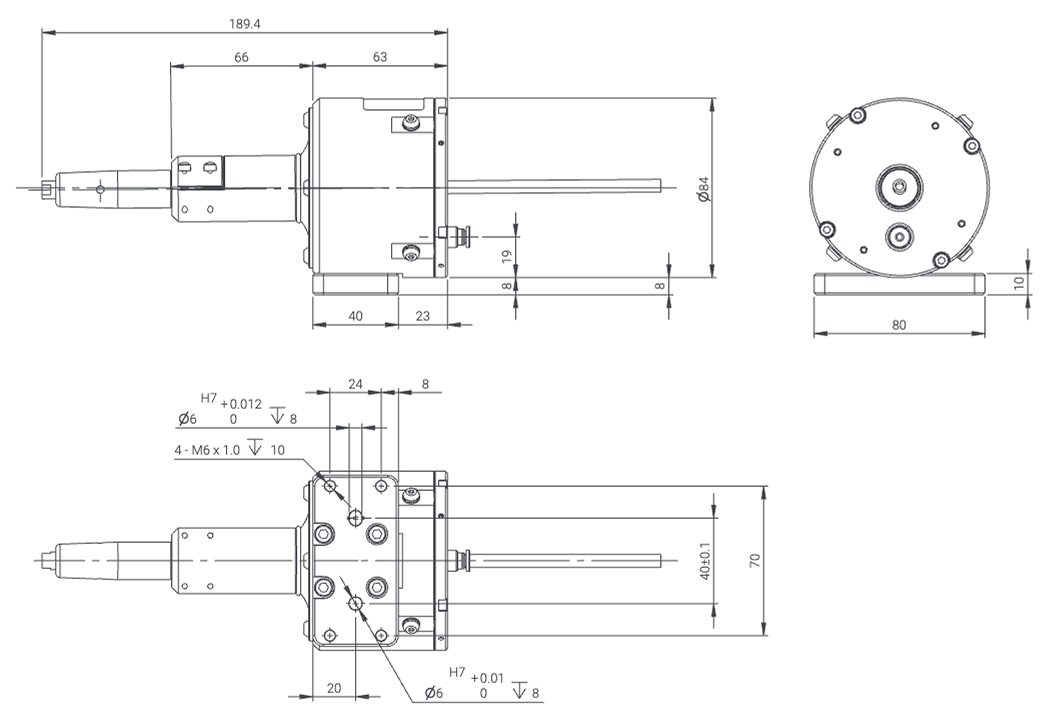

| Dimensions (Length, Width, Height) | 195 x 82 x 92 mm (7.68 x 3.23 x 3.62 in) |
| Oscillating Speed / Frequency | 65000RPM |
| Air Consumption / Power | 150 LPM (L/min) |
Good for small burrs on complex curved edges
The tool utilizes pneumatic control to process ultra-small gaps, supports radial compliance, and ensures precise surface finishing. It is designed exclusively for use with file-type tools.
Aluminum, copper, steel, plastic, composite materials, and wood.
| Functions | Pneumatic File |
| Collet Size | Φ6 / File |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 12-30 N |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 3kg (6.61lb) |
| Dimensions (Length, Width, Height) | 300 x 130 x 138 mm (11.81 x 5.12 x 5.43 in) |
| Oscillating Speed / Frequency | 5000 BPM / 10 mm |
| Air Consumption / Power | 170 LPM (L/min) |
| Optional: A high-force compliance version is available for large or high-hardness workpieces. | |
Good for large burrs on complex curved edges
Compact design with strong compliance force, utilizing pneumatic control to handle ultra-small gaps. Supports highly sensitive radial compliance, ensuring precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 13-32N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3kg (6.61 lbs) |

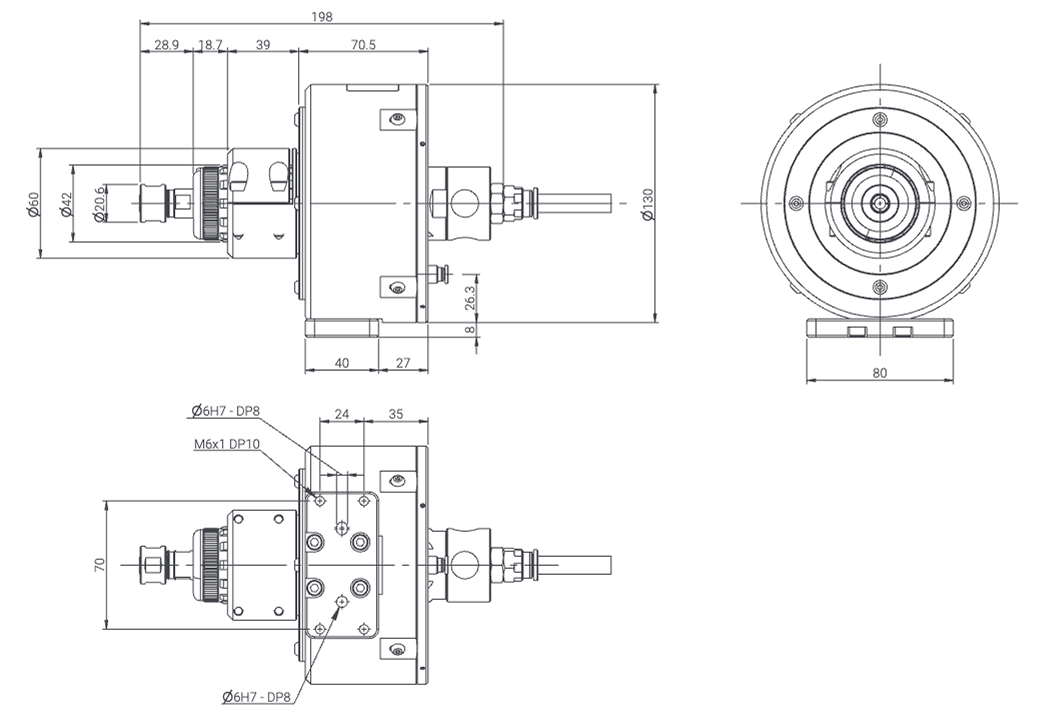

| Dimensions (Length, Width, Height) | 198 x 130 x 138 mm (7.8 x 5.1 x 5.4 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness materials. | |
Good for large burrs on complex curved edges
The most typical design, utilizing pneumatic control to handle ultra-small gaps. Supports highly sensitive radial compliance, ensuring precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 15-38N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3.2kg (7.0 lbs) |

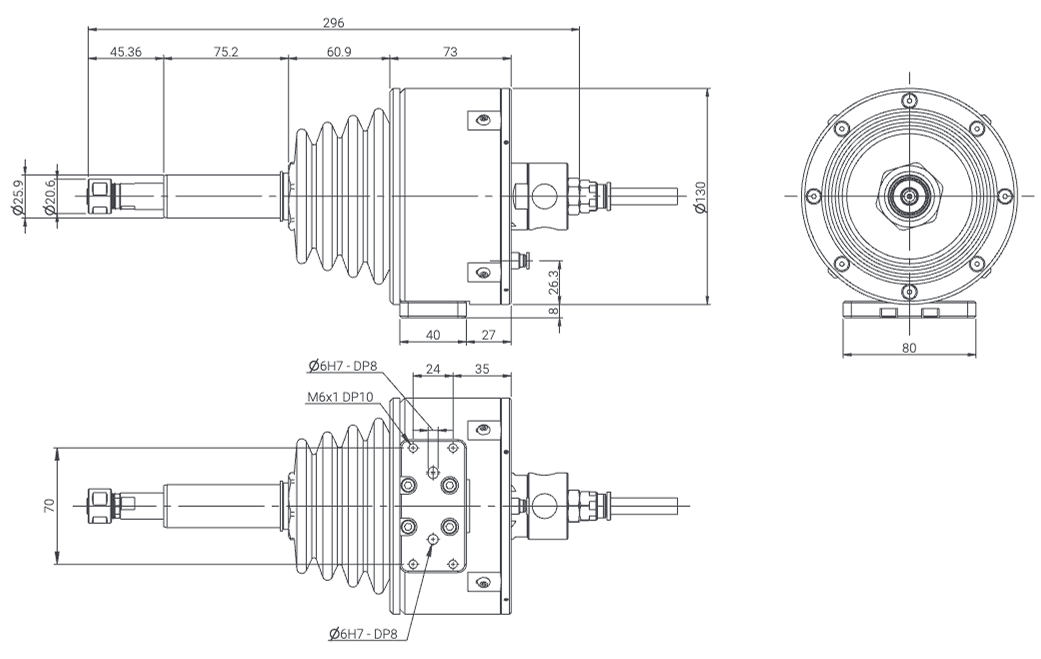

| Dimensions (Length, Width, Height) | 296 x 130 x 138 mm (11.6 x 5.1 x 5.4 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness burrs. | |
Good for Large Burrs on Complex Curved Edges

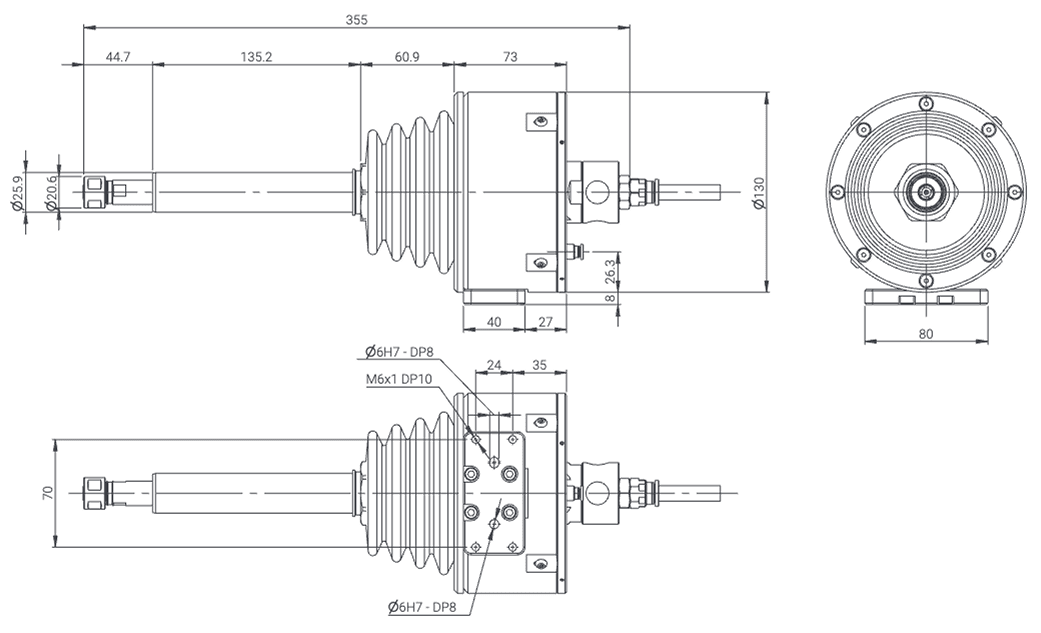

Designed for internal cavity processing with an extra-long shaft. Utilizes pneumatic control to handle ultra-small gaps, supports highly sensitive radial compliance, and ensures precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 15-38N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3.2kg (7.0 lbs) |
| Dimensions (Length, Width, Height) | 296 x 130 x 138 mm (11.6 x 5.1 x 5.4 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness burrs. | |
