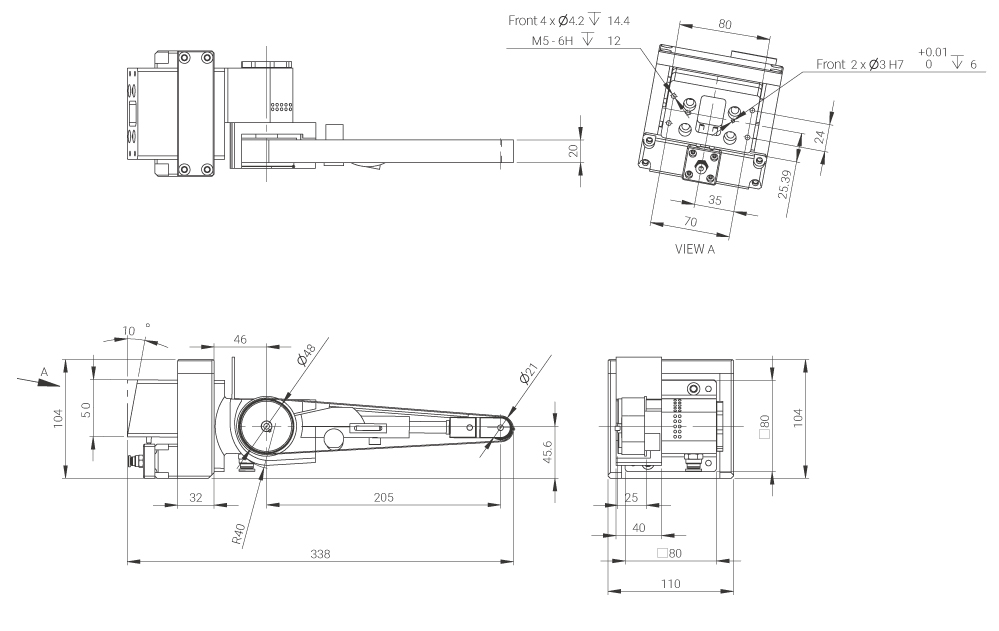

Lightweight and stable structure with high-speed drive, maintaining grinding quality during long-term operation. Compliant pressure control allows close contact with curved surfaces and edges. Supports ABSC4-RTH automatic belt change system, enhancing multi-step processing efficiency.
Good for fine finishing of metal surfaces including scratches

Aluminum, copper, steel, cast iron, stainless steel, plastic, composite materials, and wood.
| Functions | Small Sanding Belt |
| Collet Size | Belt width 20 x length 520mm |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Unidirectional 8° |
| Compliant Force | 2.6-6.5N |
| Power | 0.5kW |
| Weight | 3kg (6.61 lbs) |
| Dimensions (L x W x H) | 338 x 110 x 104 mm (13.30 x 4.33 x 4.09 in) |
| Speed | 16000 RPM |
| Spindle Pressure | 0.6MPa (6bar) |
| Air Consumption | 600LPM (L/min) |

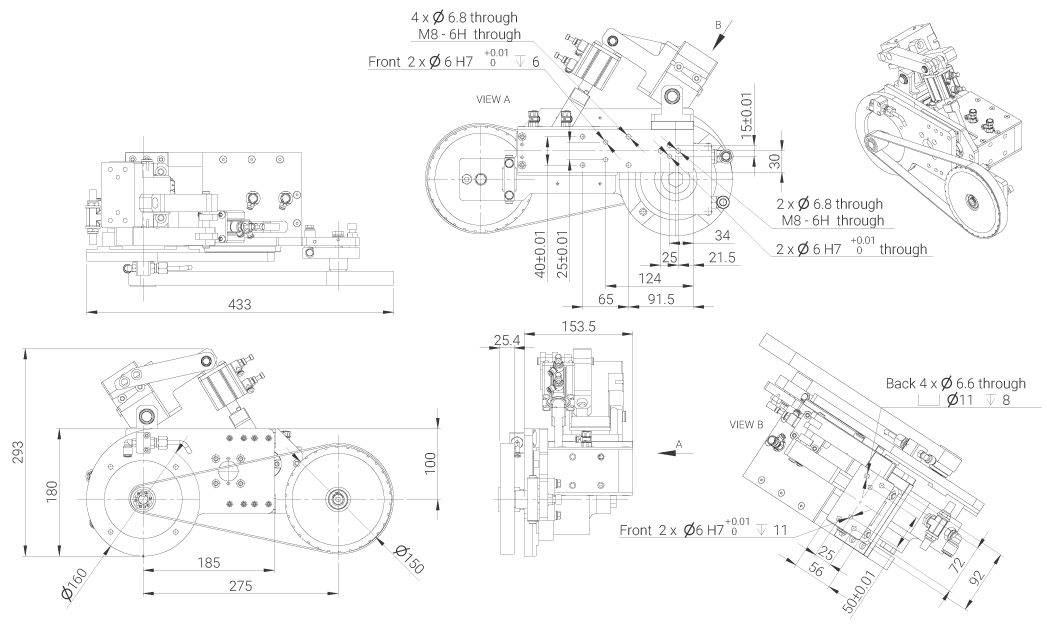

BSA800 is a high performance belt grinding compliance force tool designed for fast and consistent material removal across large surface areas. It delivers powerful and stable operation, making it ideal for finishing both metallic and non-metallic materials. When integrated with robotic end effectors, it is purpose built for long duration high volume grinding tasks and significantly improves automation efficiency and surface consistency. BSA800 also supports the ABSC4-RTH automatic belt change system, enabling smooth transitions between abrasive belts for continuous multi step processing.
Good for fine finishing of metal surfaces including scratches

Aluminum, copper, steel, cast iron, stainless steel, plastic, composite materials, and wood.
| Functions | Small Sanding Belt |
| Collet Size | Sanding Belt Width 25.4 mm |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | 15 mm |
| Compliant Force | 36.5-91N |
| Power | 1.25kW |
| Weight | 14kg (30.86 lbs) |
| Dimensions (L x W x H) | 473 x 187.5 x 293 mm (18.62 x 7.38 x 11.53 in) |
| Speed | 3000 RPM |
| Spindle Pressure | 0.6MPa (6bar) |
| Air Consumption | 970LPM (L/min) |
