AC Series
Good for Large Burrs on Complex Curved Edges
The tool uses pneumatic control to handle ultra-small gaps, supports angular compliance, ensures precise surface finishing, and is compatible with file-type tools.
Aluminum, copper, steel, plastic, composite materials, wood.
Functions | Pneumatic File |
Collet Size | Φ6/ Flat File |
Compliant Pressure | 0.2-0.5MPa (2 -5bar) |
Compliant Stroke | + -5.5° |
Compliant Force | 6-15N |
Spindle Pressure | 0.6MPa (6bar) |
Weight | 2kg |

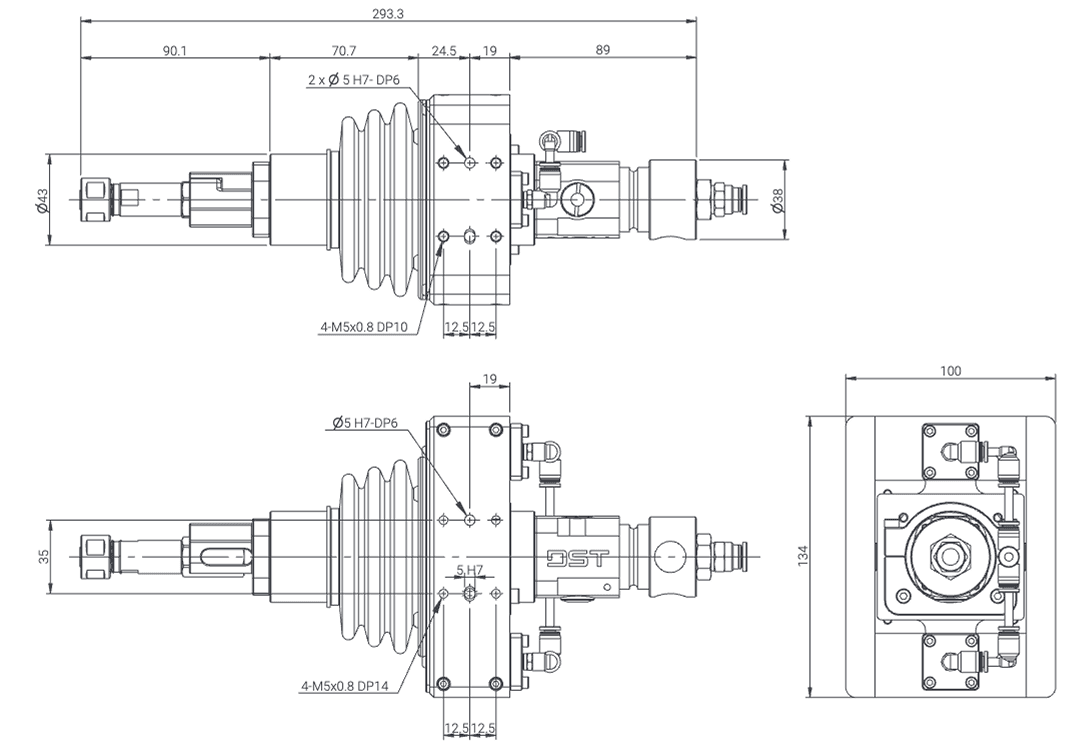

Dimensions (Length, Width, Height) | 300 x 100 x 134 mm(11.81 x 3.94 x 5.28 in) |
Oscillating Speed / Frequency | 5000BPM/10mm |
Air Consumption / Power | 170LPM(L/min) |
Good for Large Burrs on Curved Surfaces
The tool utilizes a compliant structure to adapt to the workpiece shape for surface processing. Combined with pneumatic control, it handles ultra-small gaps, supports angular compliance, prevents over-grinding, and ensures precise surface finishing.
Aluminum, Copper, Steel, Plastic, Composite Materials, Wood
Functions | Pneumatic Grinder |
Collet Size | Φ3、Φ6 / Milling Bur |
Compliant Pressure | 0.2-0.5MPa (2-5bar) |
Compliant Stroke | Unidirectional 5.5° |
Compliant Force | 4-8N |
Spindle Pressure | 0.6MPa (6bar) |
Weight | 1.6 kg (3.53 lbs) |

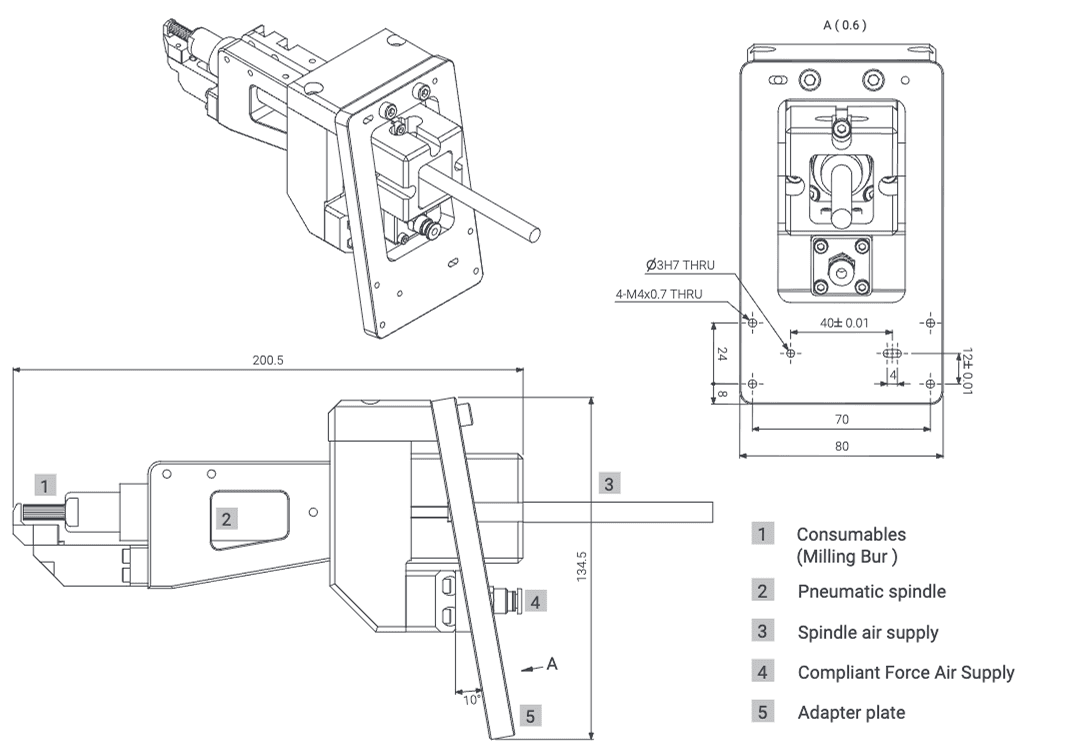

Dimensions (Length, Width, Height) | 202 x 80 x 134 mm (7.95 x 3.15 x 5.28 in) |
Oscillating Speed / Frequency | 35000RPM |
Air Consumption / Power | 350LPM (L/min) |
