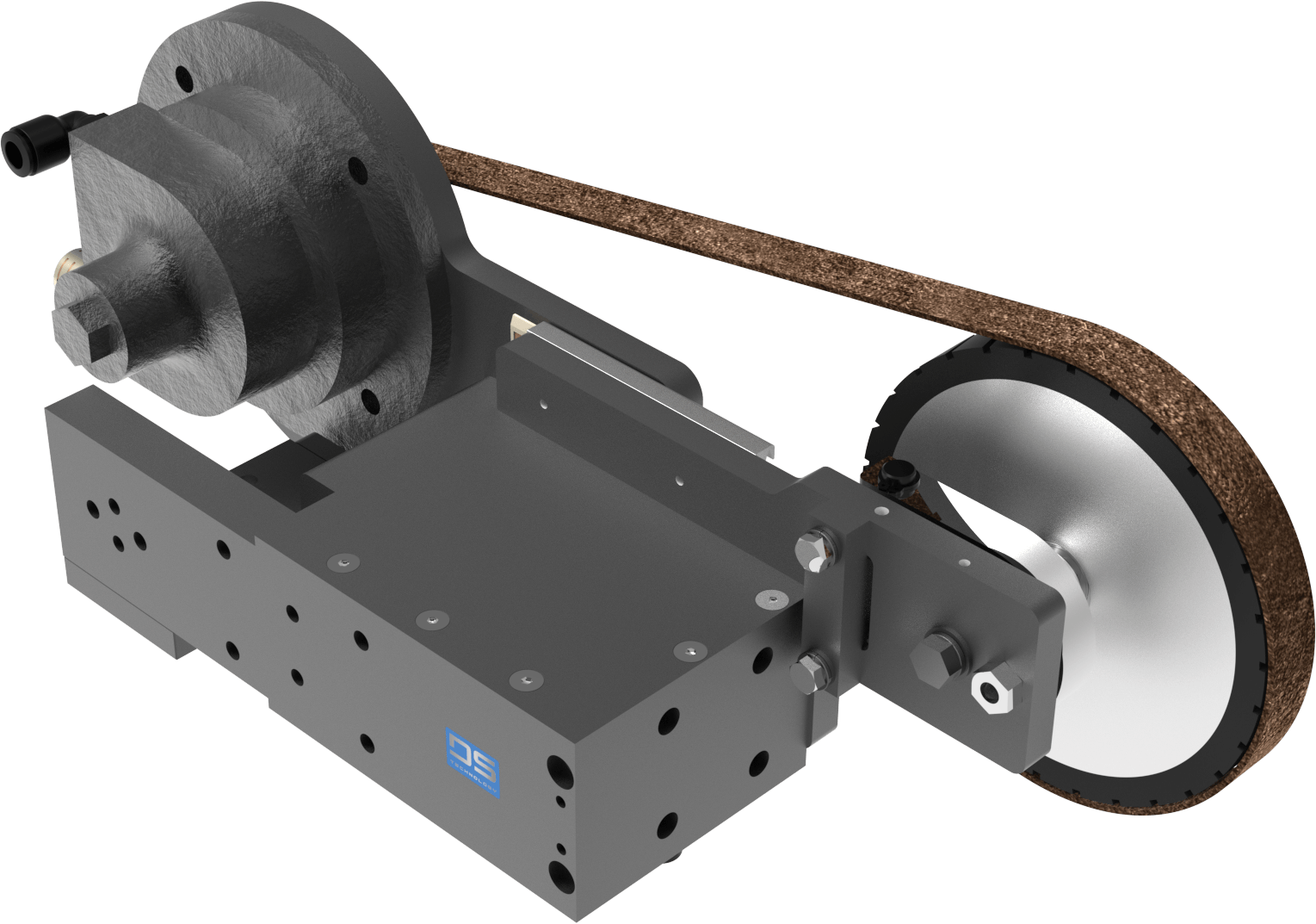

Compatible with Tool BS800
Supports BS800 series | Stores 4 abrasive belts | Supports different grit belts | Drawer-style external replacement design

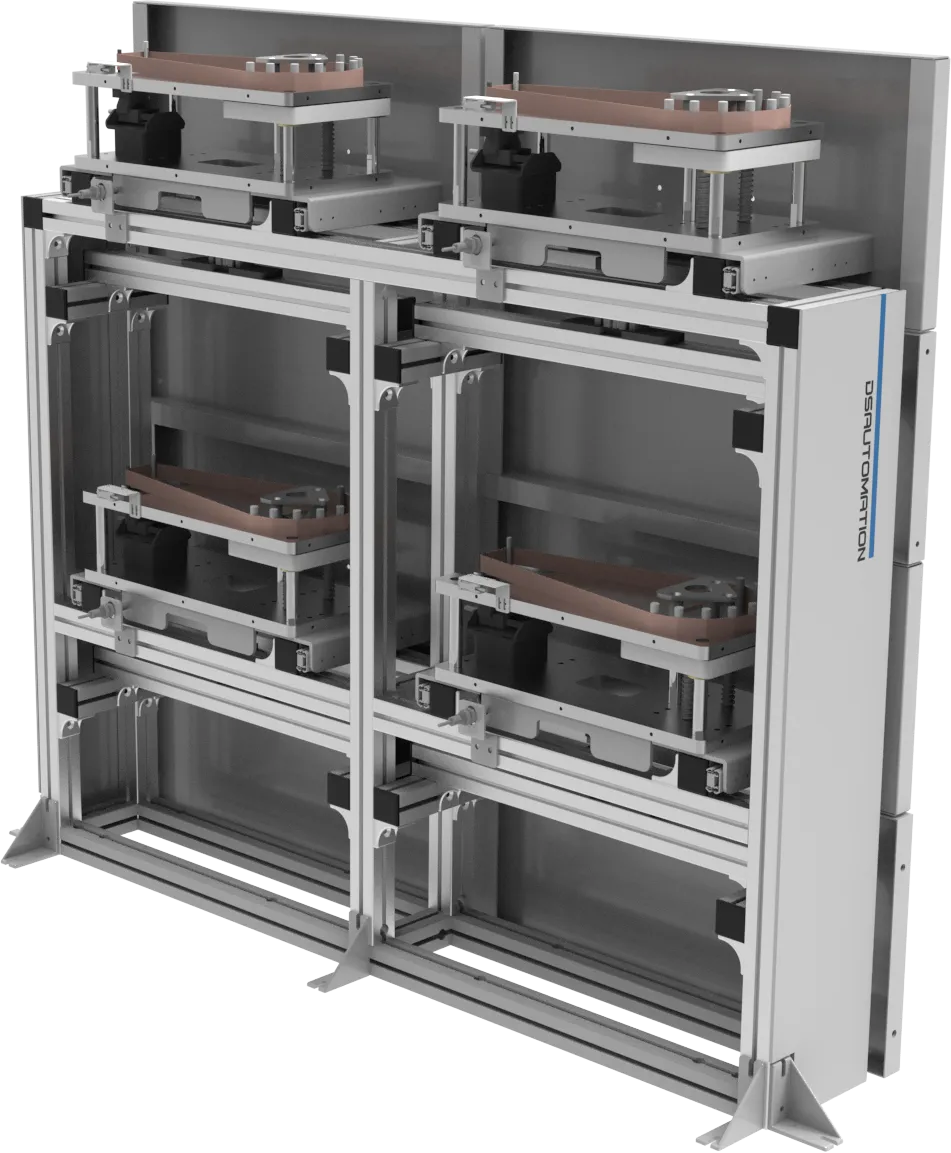

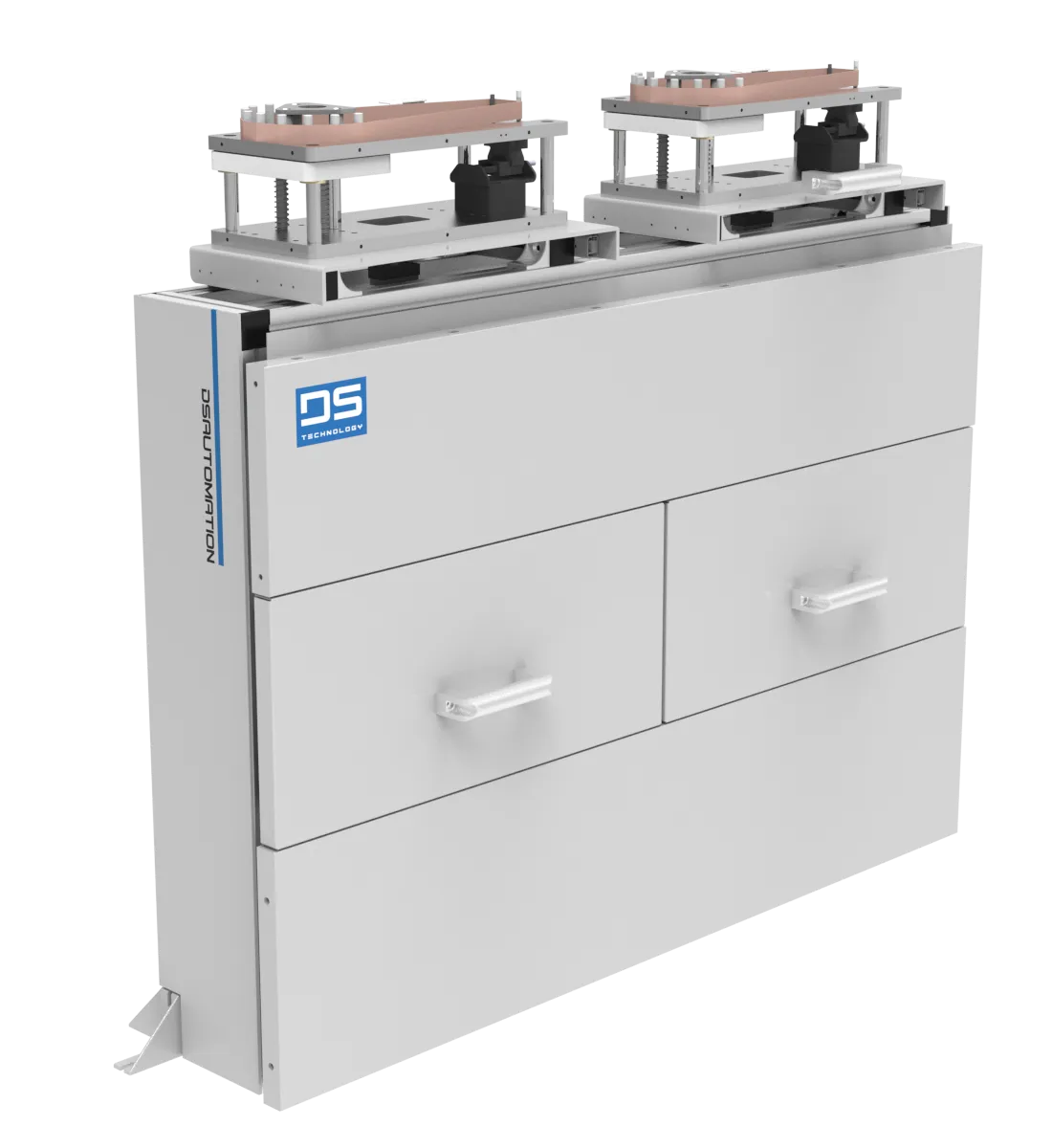

ABSC4-RTH is an automated abrasive belt changeover module developed by DS Technology, compatible with BS800 compliant force belt sanders. It provides up to 4 storage slots for abrasive belts, enabling automatic switching between coarse, medium, and fine grit belts for different grinding stages.

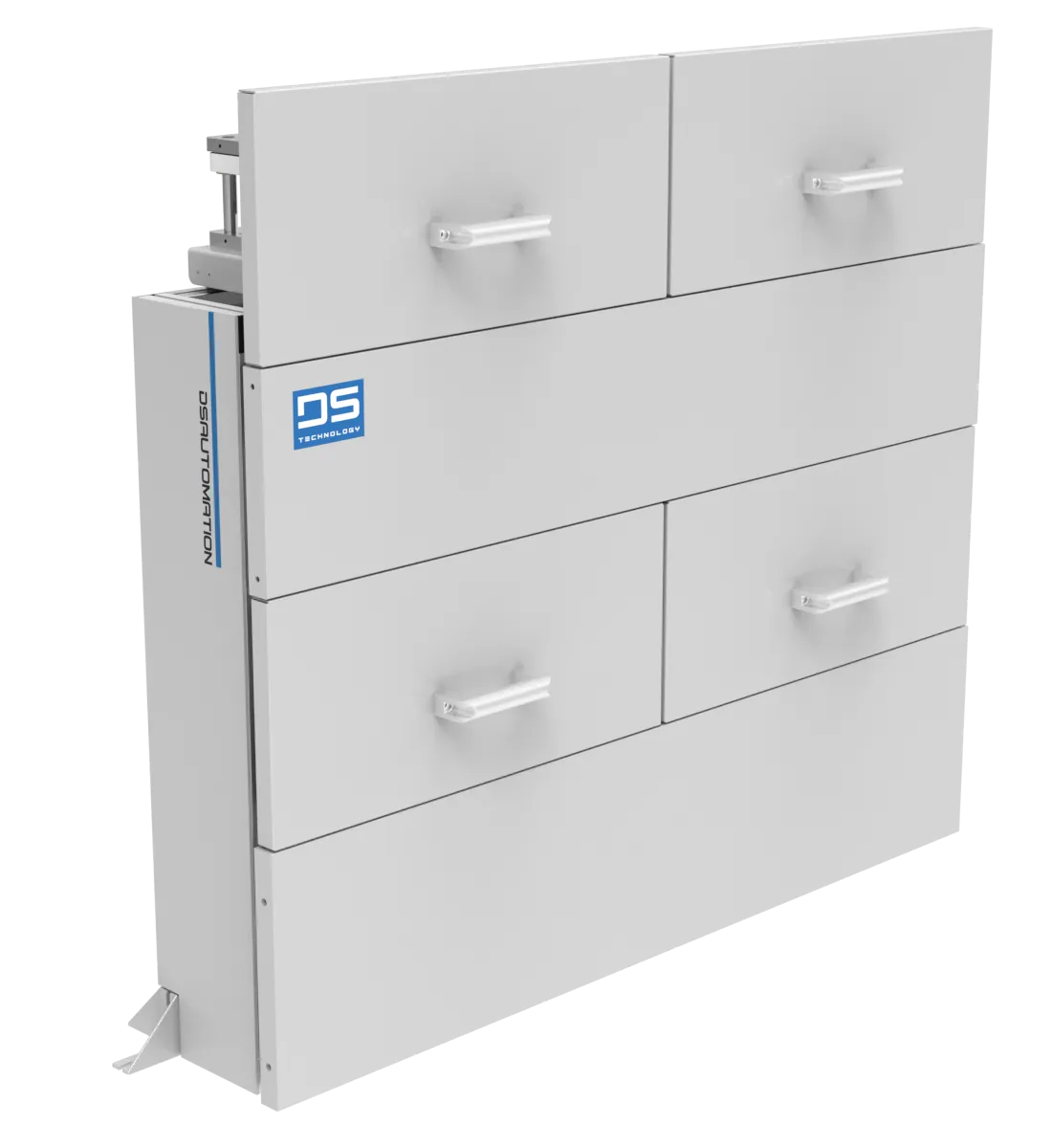

Features a front-facing drawer-style replacement structure allowing fast belt replacement and maintenance without opening the main enclosure, greatly improving ease of maintenance and operational efficiency.
Modular design supports future expansion and customization, ideal for multi-stage grinding, deburring, and surface finishing of medium and large metal components, fulfilling fully automated and flexible process requirements.
Automotive, motorcycle, bicycle, aerospace, medical, defense, hardware, semiconductor, 3C components, and other automated precision manufacturing fields
Depending on abrasive belt type and tool used; commonly processed materials include aluminum alloys, stainless steel, cast iron, plastics, composites, etc.
| Model | ABSC4-RTH Automated Abrasive Belt Changeover System |
| System Type | Automated multi-belt changeover module (drawer-type design) |
| Applicable Platform | RTH-2TP, RTH-2P automated grinding platforms |
| Compatible Tools | BS800 (compliant force belt sander) |
| Supported Drive Types | Compatible with pneumatic and electric tools |
| Supported Abrasive Quantity | Default 4 belts; expandable as required |
| Compatible Abrasive Type | Supports various belt widths/lengths/grits according to BS800 design specifications |
| Compatible Abrasive Size | Supports multiple grit belts for multi-stage grinding (coarse, medium, fine) |
| Changeover Method | Robot integrated mechanical drive structure automatically aligns, positions, and clamps belts |
| Control Method | PLC or Robot I/O |
| Operating Air Pressure | 5–6 bar |
| Power Supply | 24V DC (TBC) |

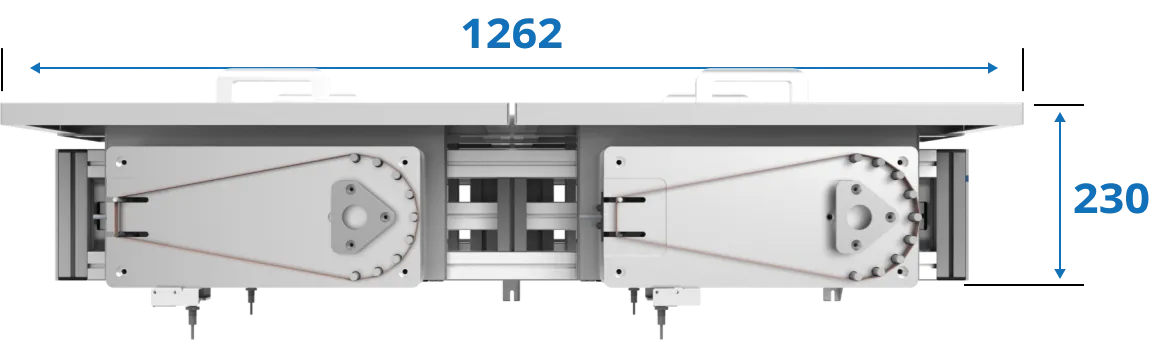

| External Dimensions | TBD |
| Abrasive Storage Capacity | 2 sheets (standard, depending on media thickness) |
| Installation Method | Embedded installation within RTH system platform |
