LRC Series
Adds Compliance Function to Customer-Owned Tools

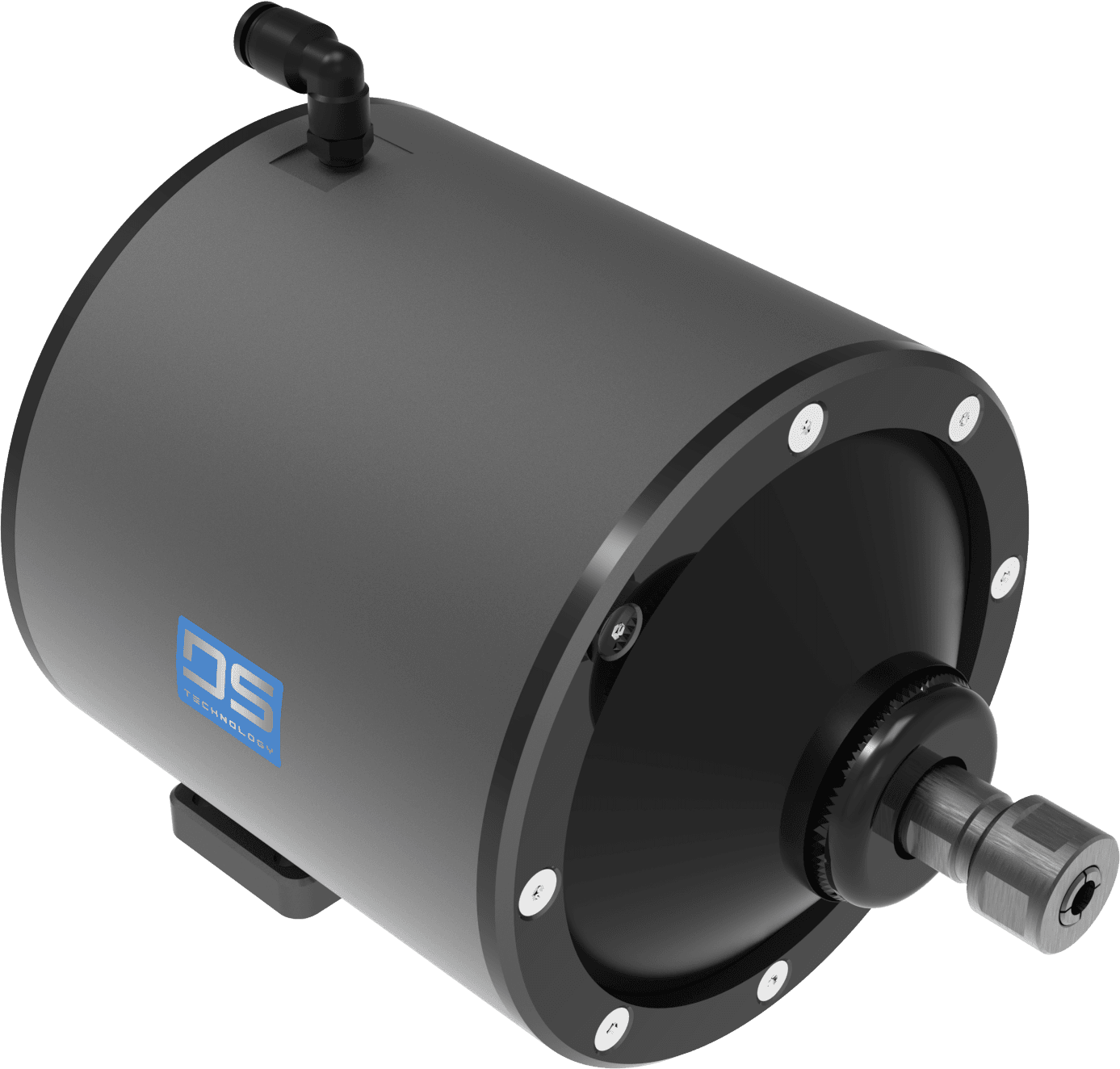

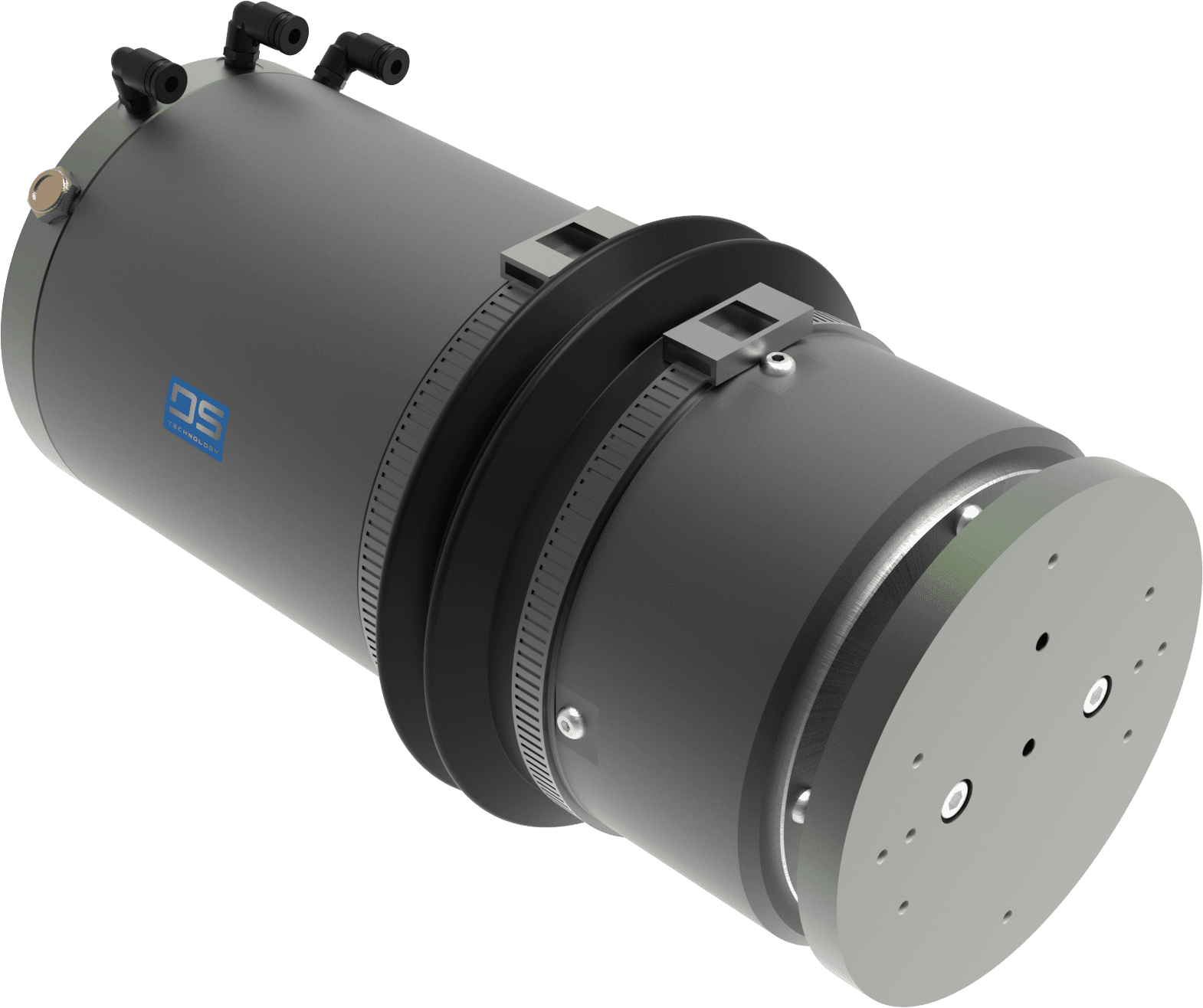

The tool offers flexible compatibility with highly smooth and sensitive linear and radial compliance. The addition of radial compliance allows easy handling of irregular surfaces during robotic path programming.
Depends on the tool used.

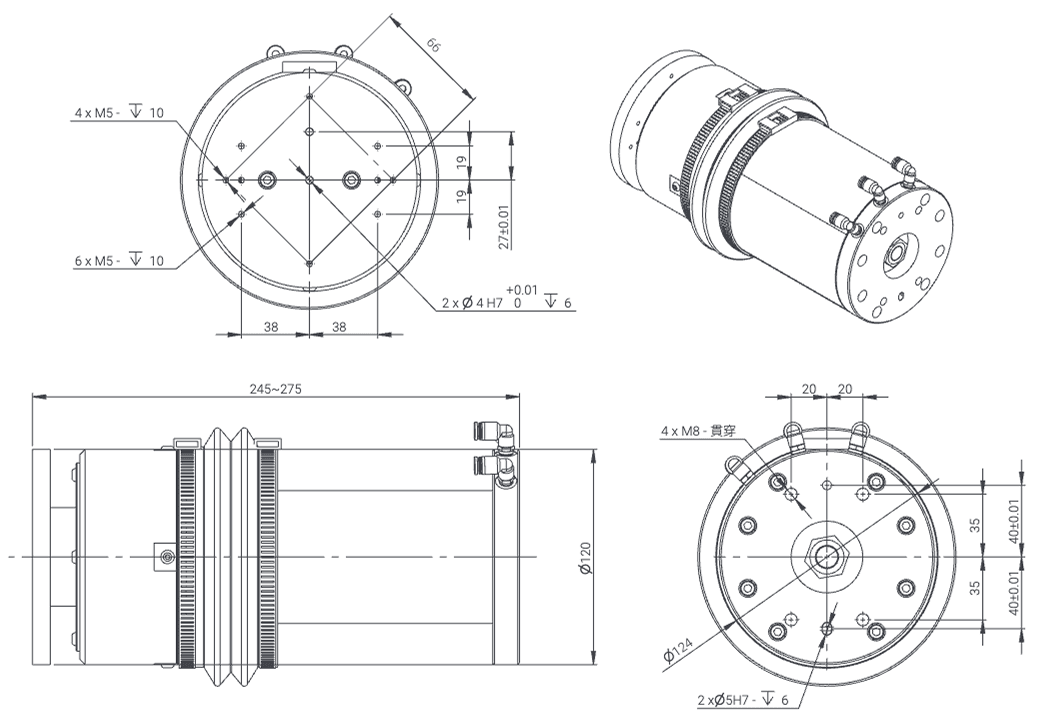

| Functions | Ultra Smooth Z-Axis + Radial Compliance Module, Compatible with Various Grinding Tools |
| Collet Size | N/A |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Axial 28mm / Radial 5° |
| Compliant Force | 40-100N |
| Spindle Pressure | N/A |
| Weight | 4.5kg (9.9 lbs) |
| Dimensions (Length, Width, Height) | 120 x 120 x 245 mm (4.7 x 4.7 x 9.6 in) |
| Oscillating Speed / Frequency | N/A |
| Air Consumption / Power | N/A |
Good for Large Burrs on Complex Curved Edges

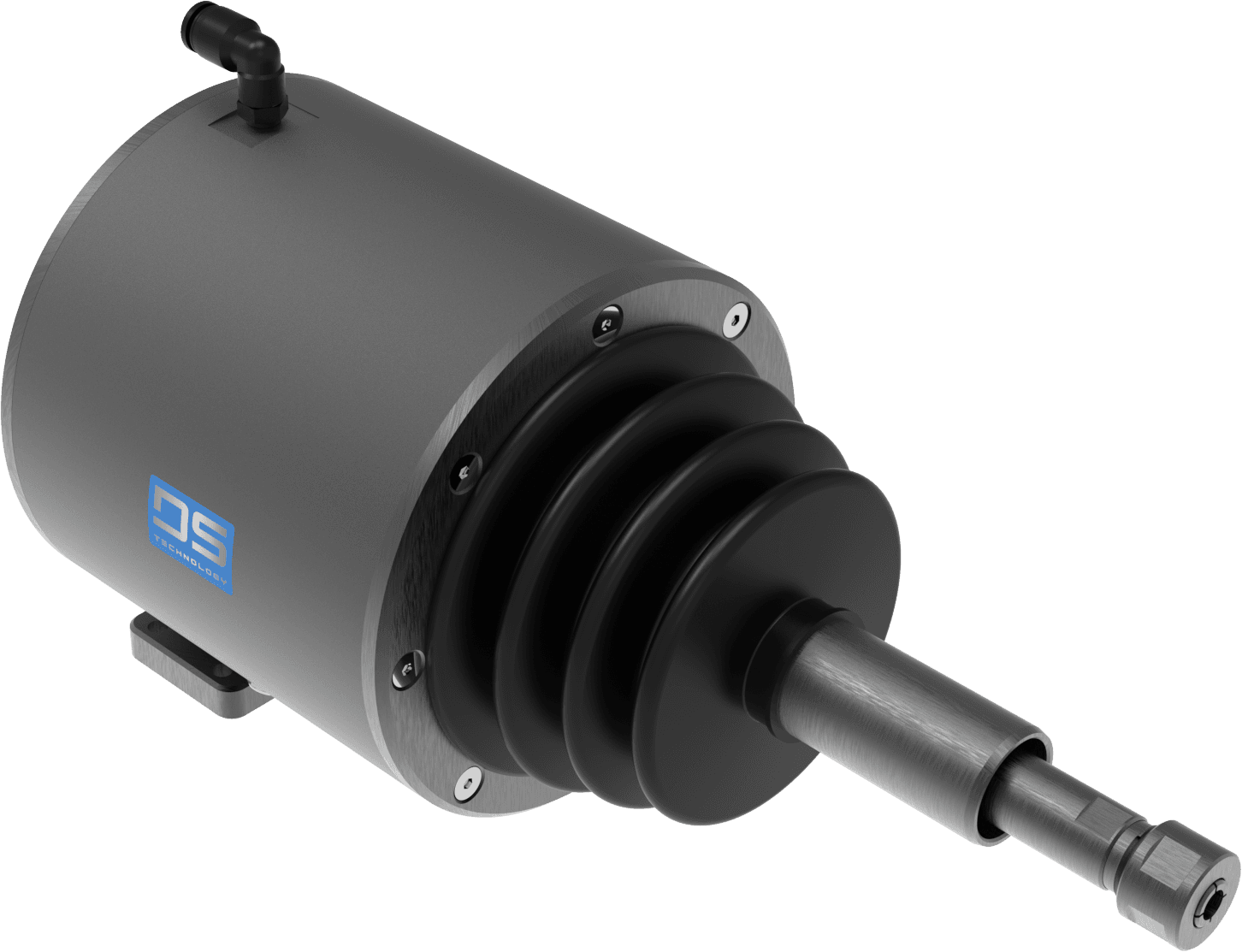

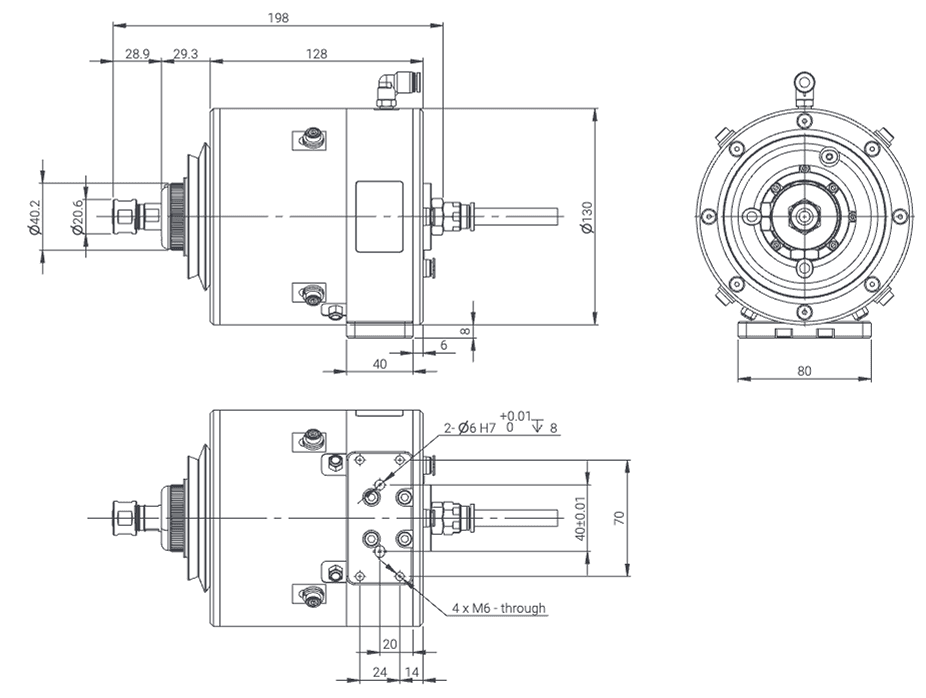

Compact design with highly strong compliance force. Utilizes pneumatic control to process ultra-small gaps, supporting highly sensitive linear and radial compliance to ensure precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Axial 5mm / Radial 5° |
| Compliant Force | 13-32N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 4.2kg (9.3 lbs) |
| Dimensions (Length, Width, Height) | 198 x 130 x 138 mm (7.8 x 5.1 x 5.4 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Linear and radial compliance can be independently controlled without mutual interference, ensuring accurate surface finishing. | |
Good for Large Burrs on Complex Curved Edges

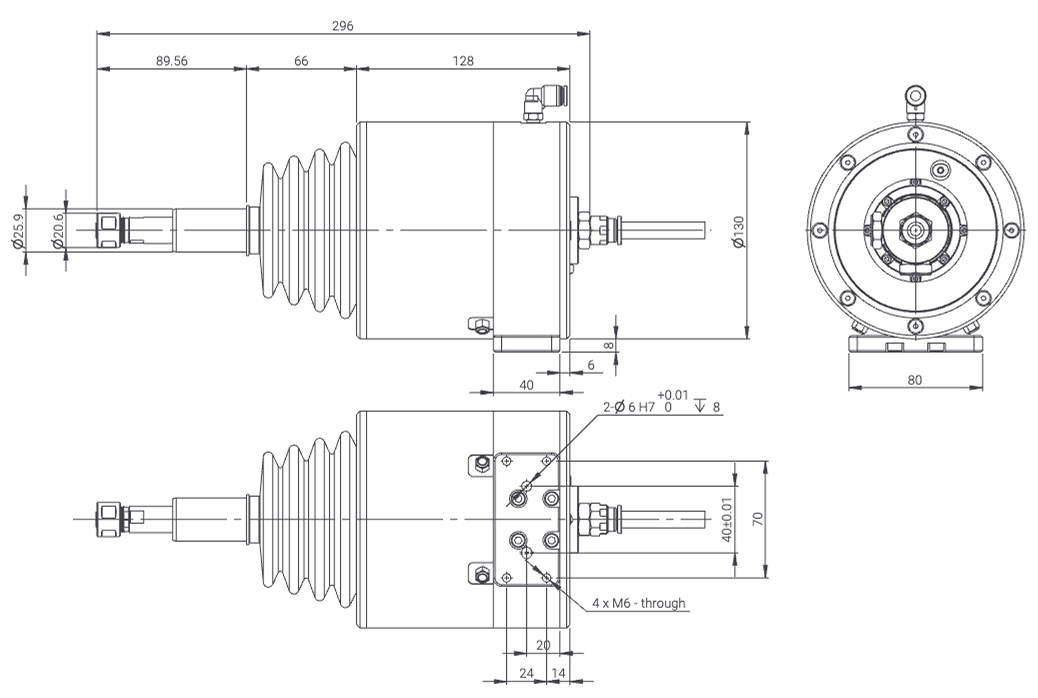

Typical length design, utilizing pneumatic control to process ultra-small gaps. Supports highly sensitive linear and radial compliance to ensure precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Axial 5mm / Radial 5° |
| Compliant Force | 15-38N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 4.4kg (9.7 lbs) |
| Dimensions (Length, Width, Height) | 296 x 130 x 138 mm (1.6 x 5.1 x 5.4 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Linear and radial compliance can be independently controlled without mutual interference, ensuring accurate surface finishing. | |
Good for Large Burrs on Complex Curved Edges

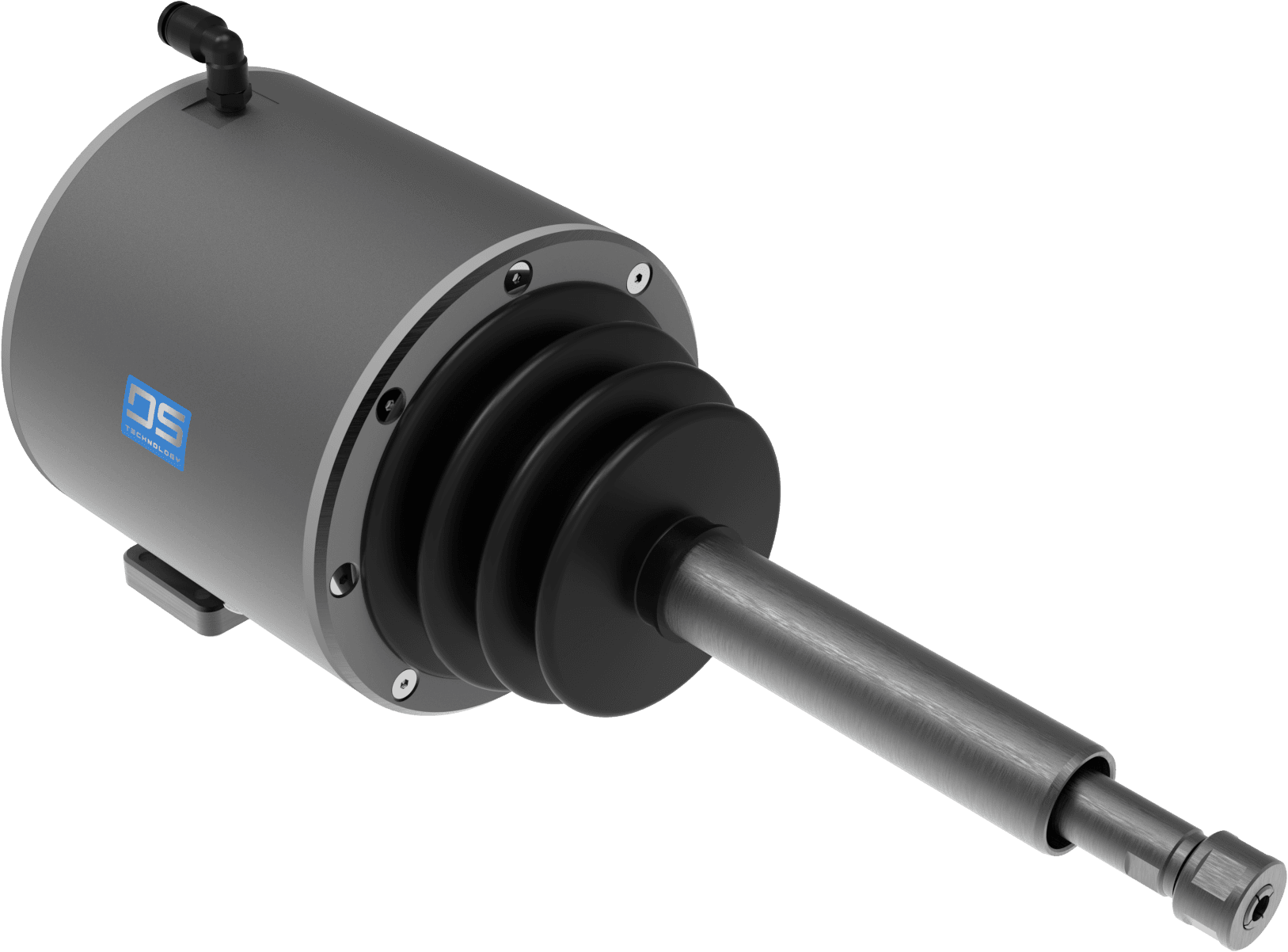

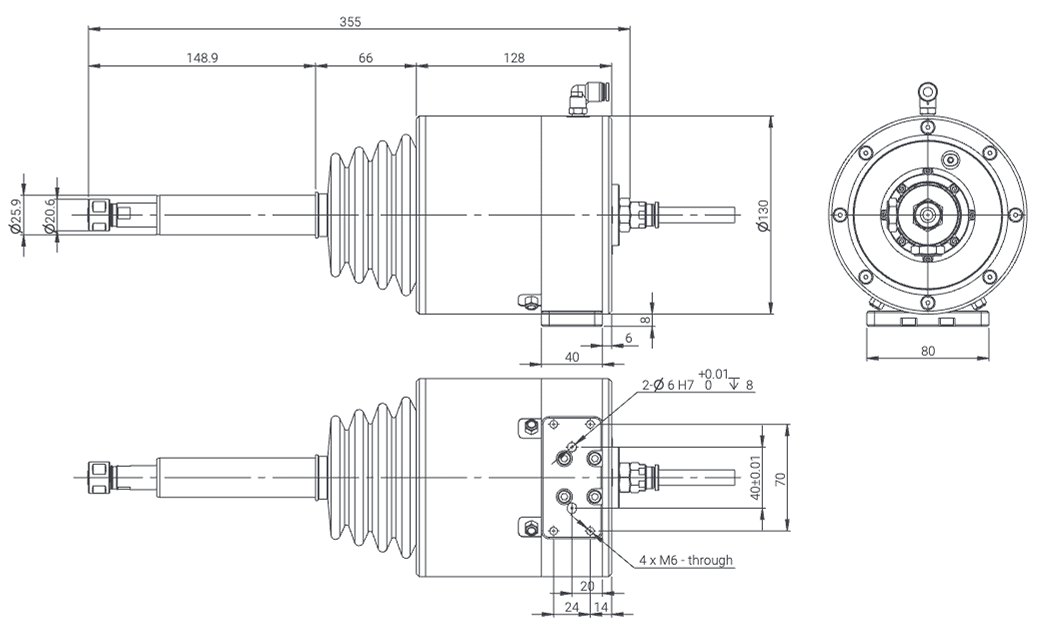

Designed for internal cavity processing with an extra-long shaft. Utilizes pneumatic control to handle ultra-small gaps, supporting highly sensitive linear and radial compliance to ensure precise surface finishing.
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Axial 5mm / Radial 5° |
| Compliant Force | 12-30N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 4.7kg (10.4 lbs) |
| Dimensions (Length, Width, Height) | 355 x 130 x 138 mm (13.98 x 5.12 x 5.43 in) |
| Oscillating Speed / Frequency | 16000RPM |
| Air Consumption / Power | 510LPM (L/min) |
| Linear and radial compliance can be independently controlled without mutual interference, ensuring precise surface finishing. | |
