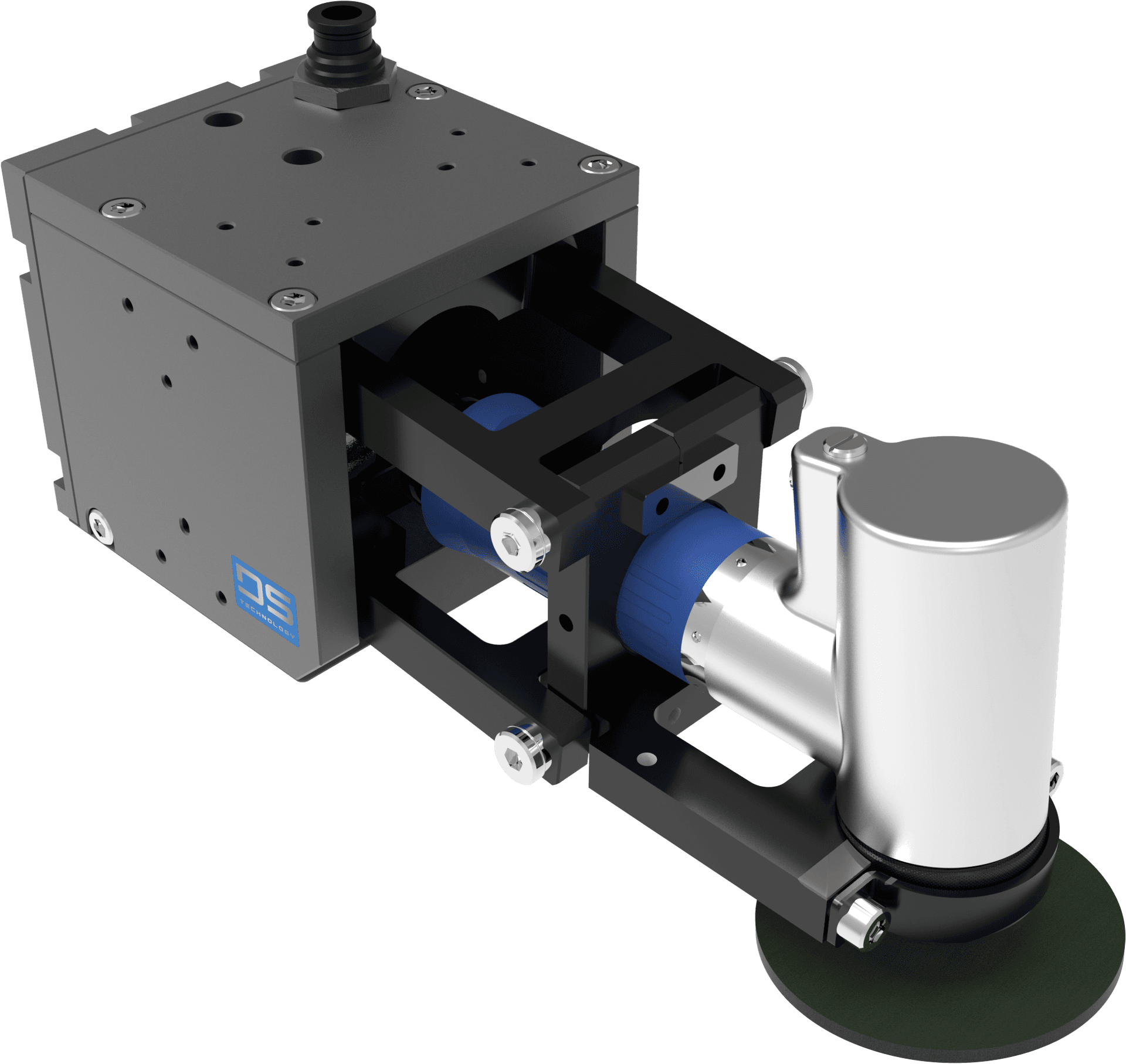

PC Series
Good for Large Burrs on Curved Edges
Minimal compliance force and lightweight grinding. Capable of performing multiple functions based on different sanding disc installations.
Aluminum, copper, steel, cast iron, stainless steel, plastic, composite materials, and wood.
| Functions | Pneumatic Grinder |
| Collet Size | 3"/ Grinding Wheel, Sanding Disc |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 8mm |
| Compliant Force | 20-50N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 2.4kg (5.3 lbs) |
| Dimensions (Length, Width, Height) | 266 x 104 x 101mm (10.5 x 4.1 x 4 in) |
| Oscillating Speed / Frequency | 18000RPM |
| Air Consumption / Power | 150LPM(L/min) |

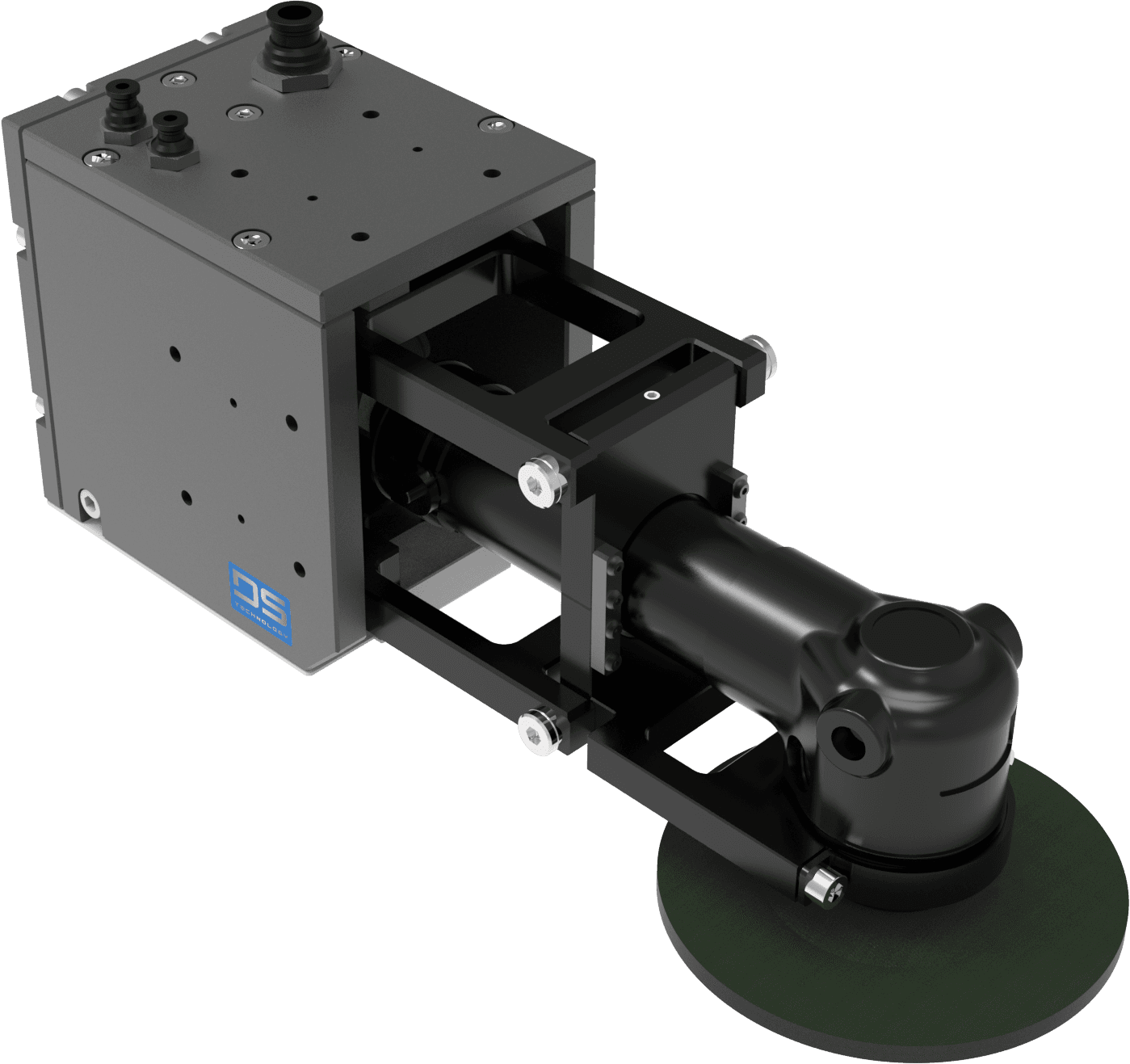

Good for Large Burrs on Curved Edges
Workpiece touch sensing and powerful grinding. Capable of performing multiple functions based on different sanding disc installations.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, and wood.
| Functions | High-Power Pneumatic Grinder |
| Collet Size | 5"/ Grinding Wheel, Sanding Disc |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 8mm |
| Compliant Force | 20-50N |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 4kg (8.8 lbs) |
| Dimensions (Length, Width, Height) | 330 x 136 x 105mm (13 x 5.4 x 4.1 in) |
| Oscillating Speed / Frequency | 12000RPM |
| Air Consumption / Power | 1800LPM (L/min) |
