EBS Series

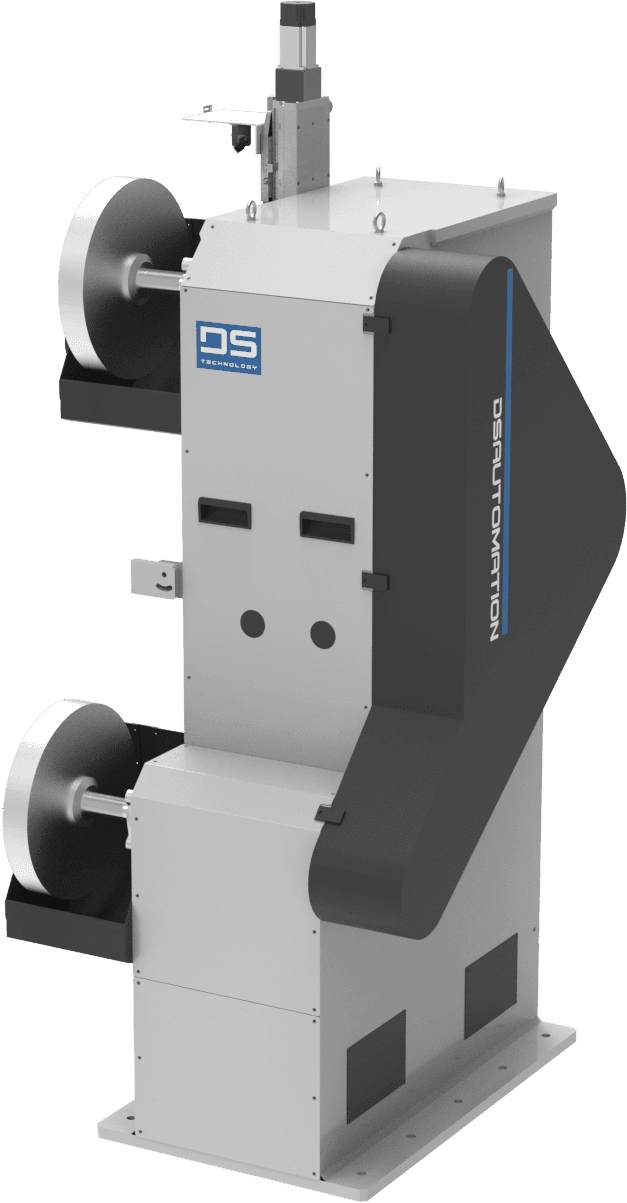

Dual grinding wheel design allows installation of two different grinding wheels. An optional high-precision grinding wheel diameter detection system is available. Using flap wheels enhances surface quality and addresses complex surfaces effectively
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Flap Sander |
| Oscillating Speed | 1700RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 833 x 747 x 1670 mm (32.8 x 29.4 x 65.7 in) |
| Weight | 616 kg (1359.5 lbs) |
| Wheel Diameter | 300-400mm |
| Optional: Automatic high-precision wheel diameter detection | |
The belt sander features programmable control for compliance rubber wheel-assisted or direct belt grinding. Its compliance control system ensures uniform and consistent results, offering exceptional versatility.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Variable Compliance Belt Grinder |
| Oscillating Speed | 1700RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1338 x 810 x 1470 mm (52.7 x 31.9 x 57.9 inches) |
| Weight | 320 kg (705.5 lbs) |
The abrasive belt machine for coarse grinding is specifically designed for heavy-duty applications, suitable for high material removal, and is particularly ideal for rough surface finishing and large-area coarse machining.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Heavy-Duty Belt Grinder |
| Oscillating Speed | 1700RPM |
| Power Consumption | 7.5KW |
| Dimensions (Length, Width, Height) | 1299 x 934 x 1823 mm (51.1 x 36.8 x 71.8 in) |
| Weight | 787 kg (1735.2 lbs) |
Dual abrasive belt system, designed to accommodate two different abrasive belts for rapid switching, optimizing efficiency and flexibility in the grinding process.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Belt Grinder |
| Oscillating Speed | 1700RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1338 x 925 x 1610 mm (52.7 x 36.4 x 63.4 in) |
| Weight | 385 kg (849.8 lbs) |
Dual compliance grinding wheels suitable for precision grinding and moderate material removal. The compliance force control system automatically adjusts the grinding pressure to achieve an even grinding effect.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Grinding Wheel Belt Grinder |
| Oscillating Speed | 1700RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1500 x 925 x 1610 mm (59.06 x 36.42 x 63.39 in) |
| Weight | 492 kg (1084.6 lb) |
Dual mini abrasive belt design, suitable for specialized applications, capable of reaching into internal areas for grinding. It also allows for the installation of two different abrasive belts for rapid switching.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Small Grinding Wheel Belt Grinder |
| Oscillating Speed | 1700RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1260 x 927 x 1564mm (49.61 x 36.53 x 61.53 in) |
| Weight | 360 kg (793.7 lb) |
