Linear Compliant Force

LC Series

LC300

Icon

Good for Treating Minor Burrs on Flat Surfaces

LC300

Features

The tool utilizes pneumatic control to process ultra-small gaps, supports linear compliance, and ensures precise surface finishing.

Applicable Material

Aluminum, copper, steel, plastic, composite materials, and wood.

Icon 1
Icon 2
Icon 3
Icon 4
Icon 5
Icon 6
Icon 7
Icon 8
Icon 9
FunctionsPneumatic Grinder
Collet SizeΦ3、Φ6 / Abrasive Tool with Handle
Compliant Pressure0.2-0.5 MPa (2-5 bar)
Compliant StrokeUnidirectional 10 mm
Compliant Force5-20N
Spindle Pressure0.6 MPa (6 bar)
Weight1.7 kg (3.75 lbs)
Dimensions (Length, Width, Height)205 x 73 x 85 mm (8.07 x 2.87 x 3.35 in)
Oscillating Speed / Frequency35000RPM
Air Consumption / Power350LPM (L/min)

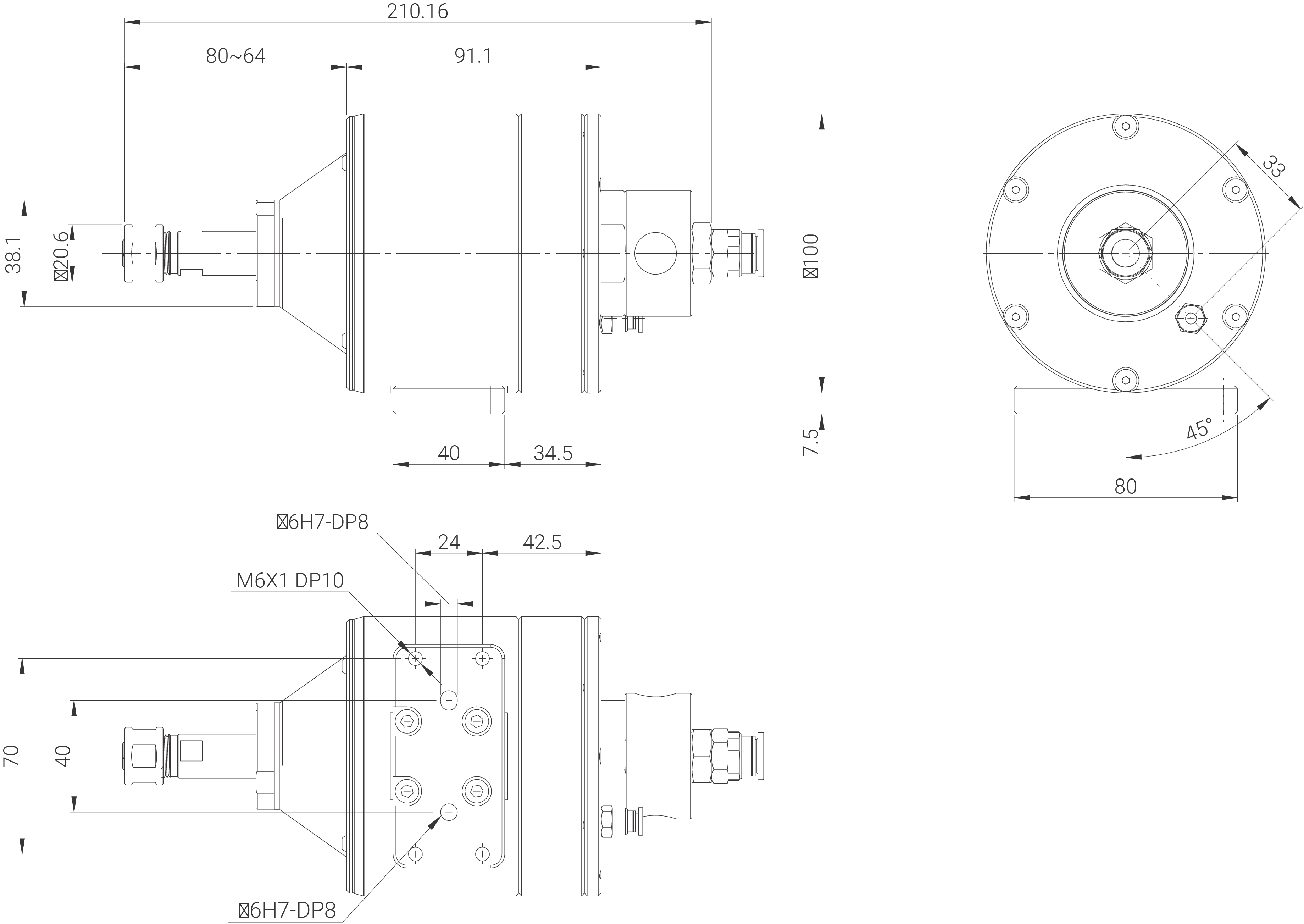

rst_drawing_LC300

LCZ100

Icon

Adds Compliance Function to Customer-Owned Tools

LCZ100

Features

The tool is compact, supports linear compliant force, and can be flexibly paired with other tools to ensure precise surface finishing.

Applicable Material

Depends on the tool used.

Icon 1
FunctionsCompact Z-axis Compliant Module (Without End-Effector)
Collet SizeN/A
Compliant Pressure0.1-0.5MPa
Compliant StrokeUnidirectional 10 mm
Compliant Force10-30N
Spindle PressureN/A
Weight1.2kg(2.65lb)
Dimensions (Length, Width, Height)95mm x 61mm x 90mm (3.74in x 2.4in x 3.54in)
Oscillating Speed / FrequencyN/A
Air Consumption / PowerN/A

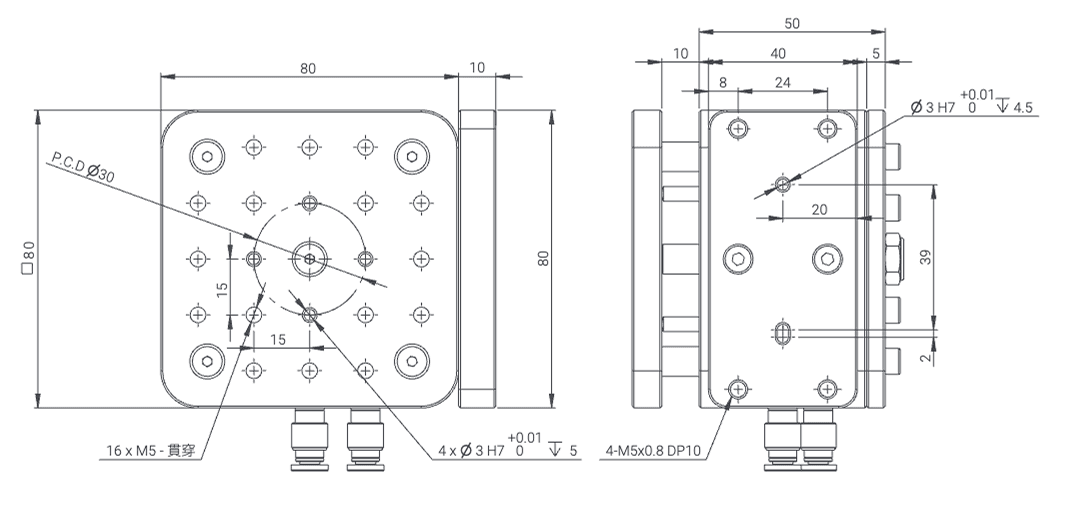

rst_drawing_LCZ100

LC300B

Icon

Precision deburring with disc brush

LC300B

Features

The tool utilizes pneumatic control to process ultra-small gaps and supports linear compliance force control. Combined with a low-speed pneumatic spindle, it is ideal for using abrasive brushes to process complex surfaces.

Applicable Material

Aluminum, copper, steel, and composite materials.

Icon 1
Icon 2
Icon 3
Icon 4
FunctionsPneumatic brushing tool for deburring
Collet SizeUnidirectional 10 mm
Compliant Pressure0.1-0.5MPa
Compliant Stroke
Compliant Force5-20N
Spindle Pressure0.6MPa
Weight1.7kg (3.75lb)
Dimensions (Length, Width, Height)205mm x 73mm x 85mm (8.07in x 2.87in x 3.34in)
Oscillating Speed / Frequency35000RPM
Air Consumption / Power350LPM

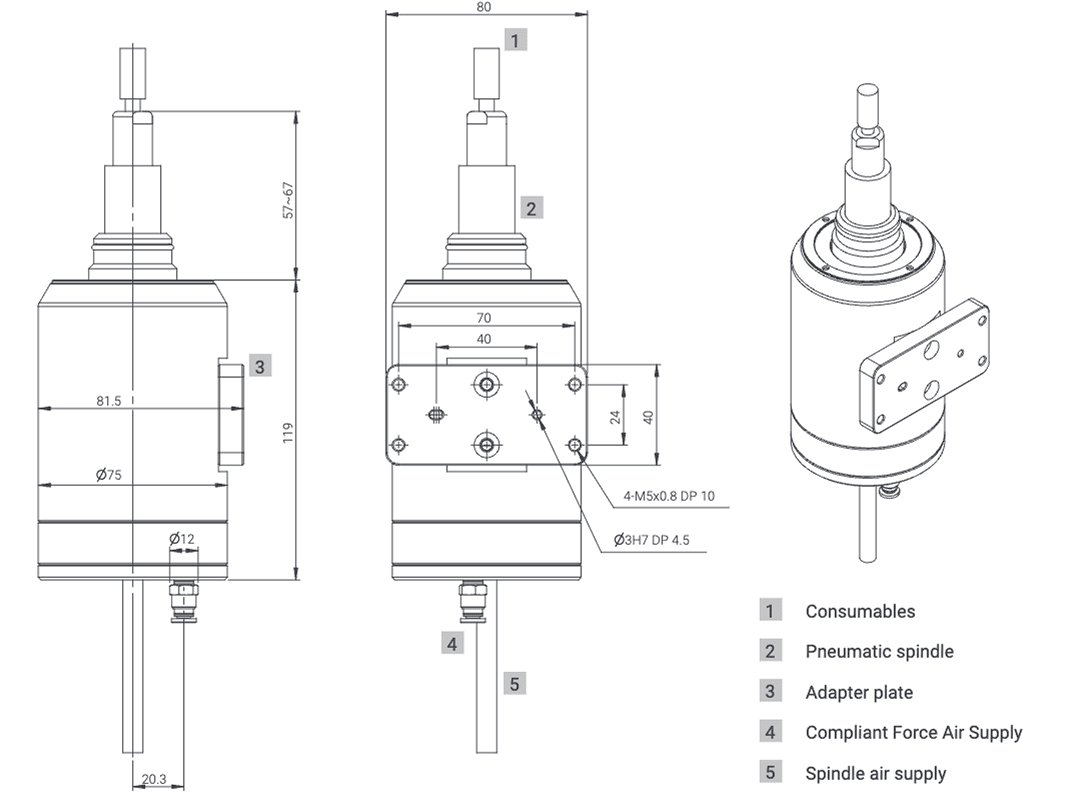

rst_drawing_LC300B

LCZ300

Icon

Adds Compliance Function to Customer-Owned Tools

LCZ300

Features

The tool offers flexible compatibility with highly smooth and sensitive linearand radial compliance.

Applicable Material

Depends on the tool used.

Icon 1
FunctionsUltra-Smooth Z-Axis Compliant Module, Compatible with Various Grinding Tools
Collet SizeUnidirectional 28 mm
Compliant Pressure0.1-0.5MPa
Compliant Stroke
Compliant Force5-20N
Spindle Pressure0.6MPa
Weight1.7kg (3.75lb)
Dimensions (Length, Width, Height)205mm x 73mm x 85mm (8.07in x 2.87in x 3.34in)
Oscillating Speed / Frequency35000RPM
Air Consumption / Power350LPM

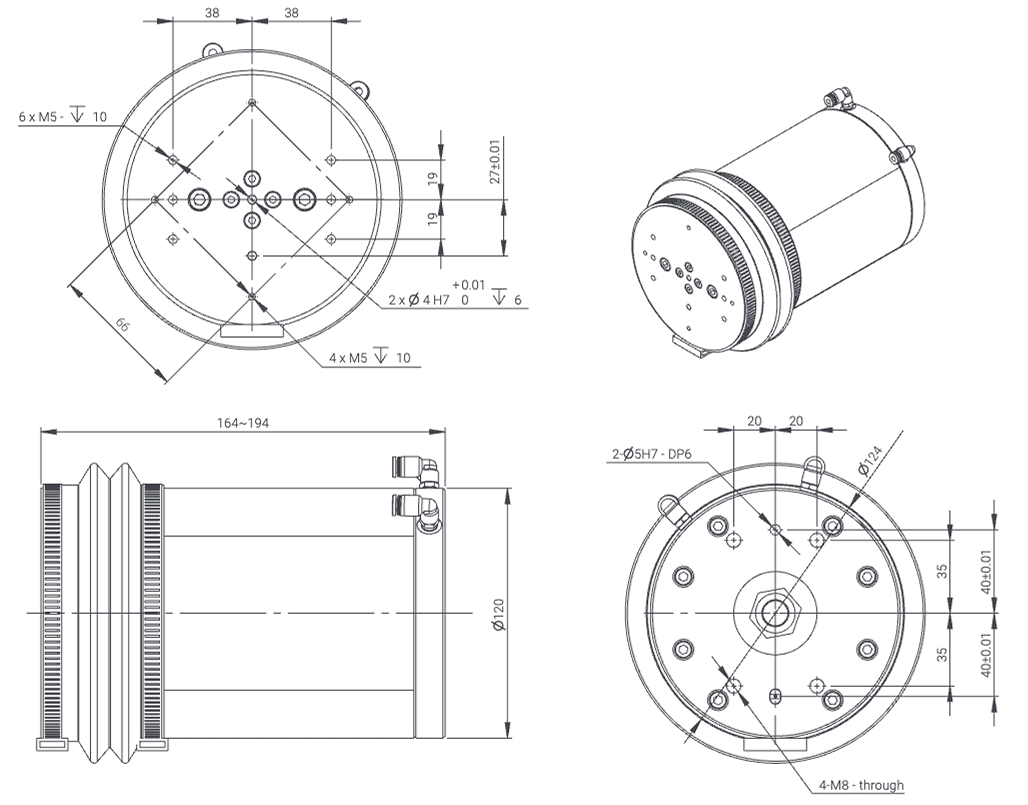

rst_drawing_LCZ300

LCZA300

Icon

Adds Compliance Function to Customer-Owned Tools

LCZA300

Features

The tool offers flexible compatibility and features a highly sensitive Active Compliance Force System (ACFS) with a built-in force sensor to ensure precise surface finishing. The ACFS maintains constant force, significantly enhancing surface finishing quality, with a linear stroke of up to 28mm.

Applicable Material

Depends on the tool used.

Icon 1
FunctionsACFS Active Z-Axis Compliance Module, Compatible with Various Grinding Tools
Collet SizeUnidirectional 28 mm
Compliant Pressure0.1-0.5MPa
Compliant Stroke
Compliant Force5-20N
Spindle Pressure0.6MPa
Weight1.7kg (3.75lb)
Dimensions (Length, Width, Height)205mm x 73mm x 85mm (8.07in x 2.87in x 3.34in)
Oscillating Speed / Frequency35000RPM
Air Consumption / Power350LPM

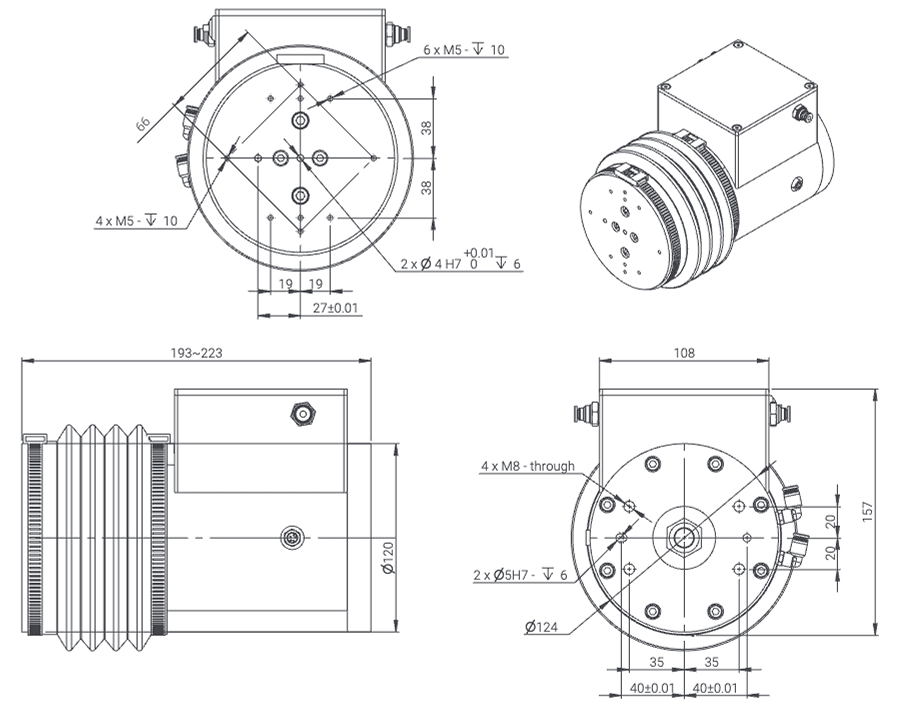

rst_drawing_LCZA300
