Compatible with Tools LCZ300 / LRCZ300
Supports multiple media sizes | Compatible with pneumatic/electric tools | Integrated with Tool Changer for fully automated media switching

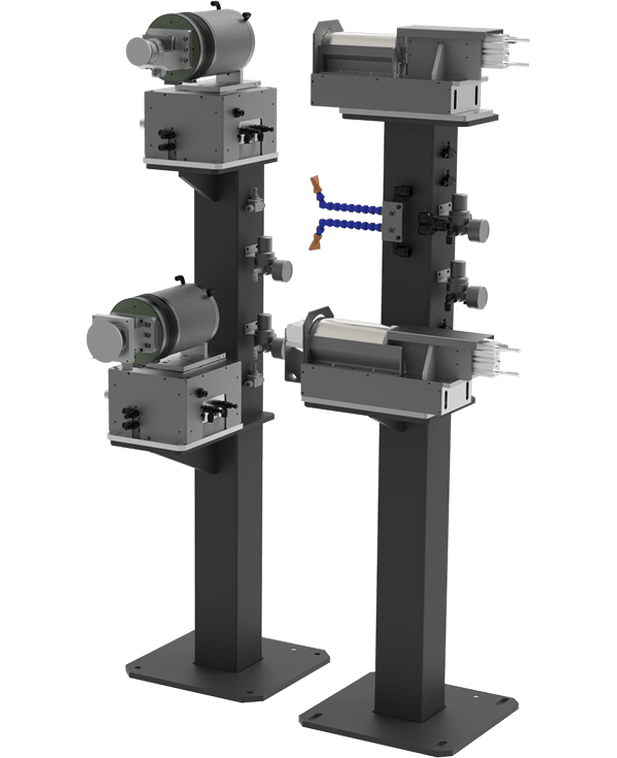

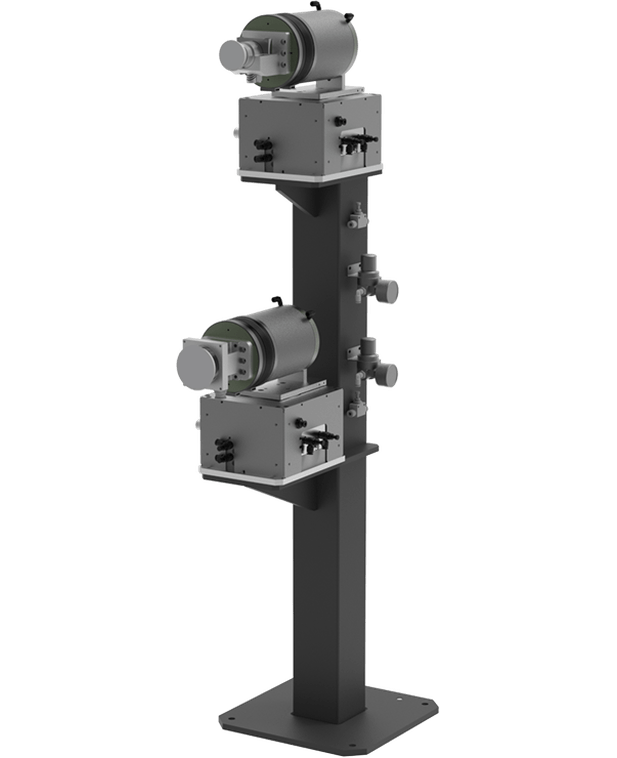

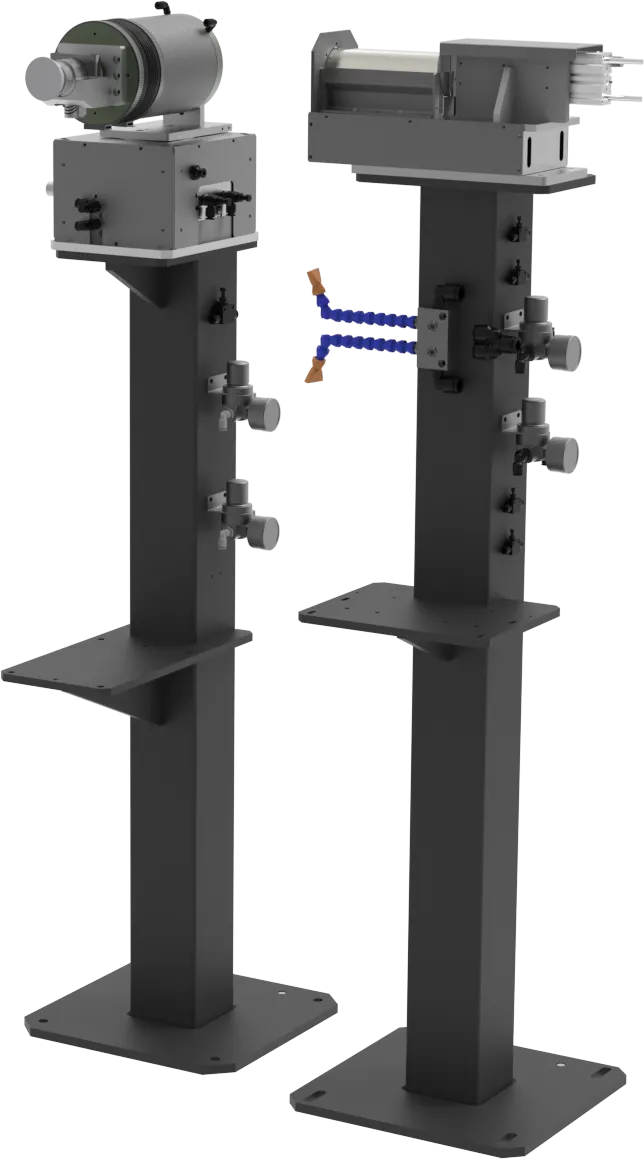

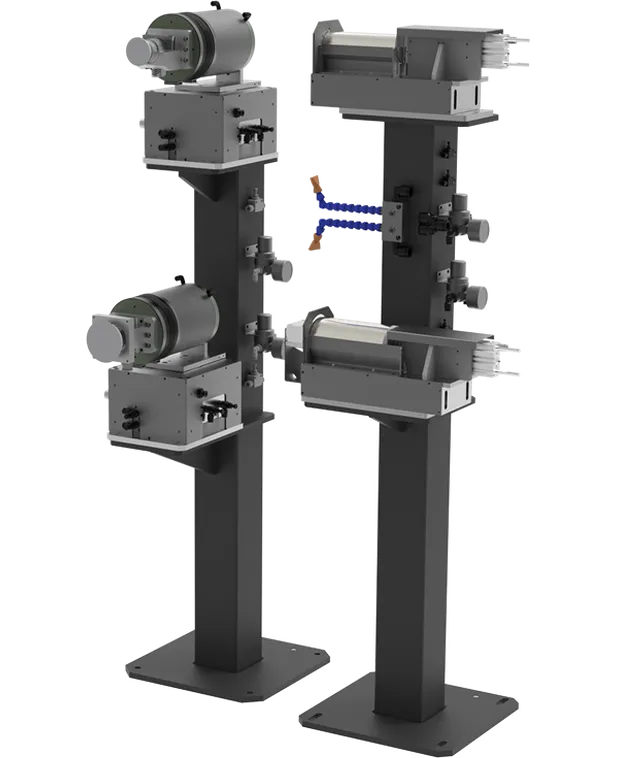

ASC4-RWH is a modular automated abrasive media changeover system developed by DS Technology. It natively supports up to 4 different abrasive media types (e.g., 2”, 3”, 5”, 6” round discs, triangular and rectangular shapes), compatible with Hook & Loop (Velcro) fastening, and offers multi-media configuration expansion options.

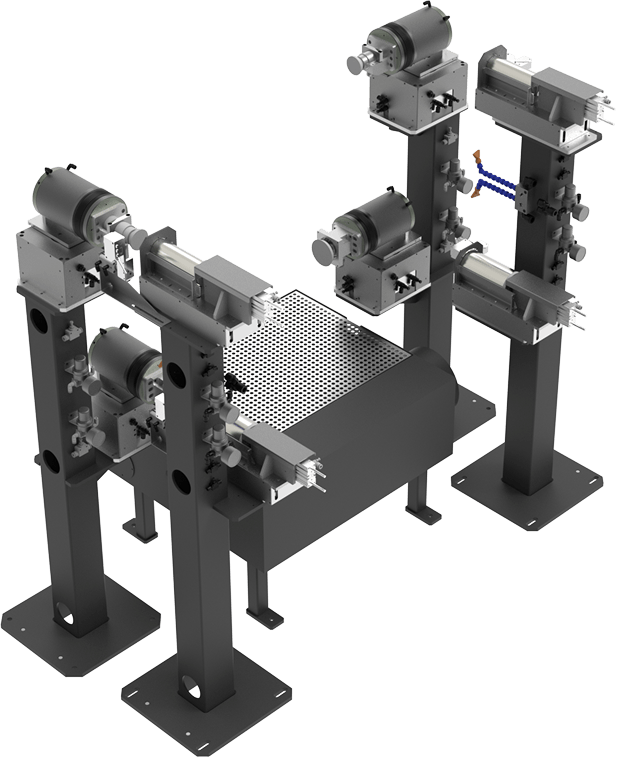

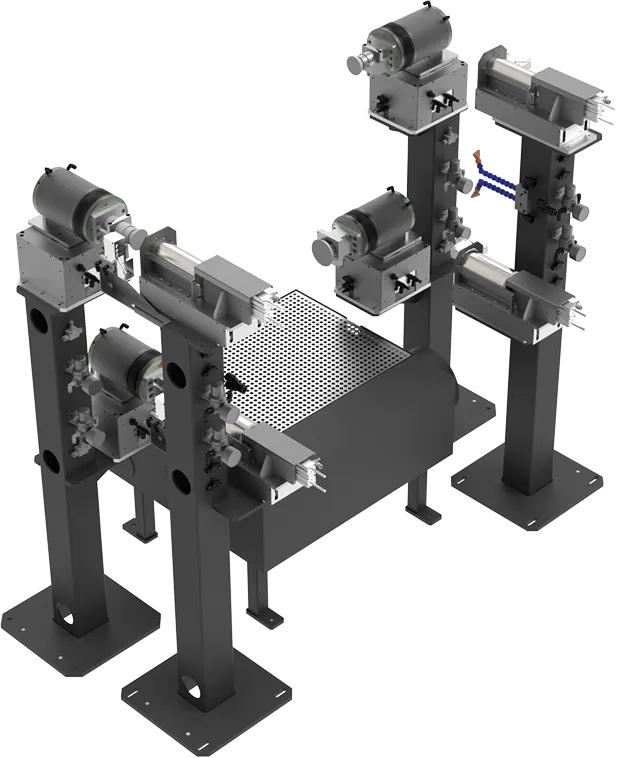

This system can be integrated with the RWH-3DF automated sanding platform and is compatible with LCZ300 and LRCZ300 compliant force tools. When combined with a robotic Tool Changer, it enables simultaneous tool and media replacement for high-mix, variable, and fully automated sanding applications.
Automotive, motorcycle, bicycle, aerospace, medical, defense, hardware, semiconductor, 3C components, and other automated precision manufacturing fields
Depending on abrasive and tool combinations; commonly processed materials include aluminum alloys, stainless steel, cast iron, plastics, composites, etc.
| Model | ASC4-RWH Automated Abrasive Media Changeover System |
| System Type | Platform-structured automated multi-media changeover system |
| Applicable Platform | RWH-3DF surface finishing module |
| Compatible Tools | LCZ300, LRCZ300 (compliant force sanding tools) |
| Supported Drive Types | Compatible with pneumatic and electric tools |
| Supported Abrasive Quantity | Supports 4 abrasive types by default; expandable based on tray configuration |
| Compatible Abrasive Type | Hook & Loop (Velcro) |
| Compatible Abrasive Size | 2”, 3”, 5”, 6” round, triangular, rectangular, and other standard sizes |
| Changeover Method | Robotic Tool Changer automatically removes used abrasive media and replaces with new, achieving fully automated media changeover |
| Control Method | PLC or Robot I/O |
| Operating Air Pressure | 5–6 bar |
| Power Supply | 24V DC (TBC) |

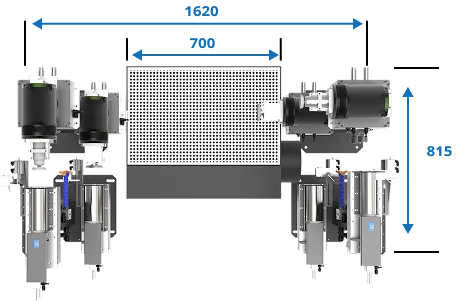

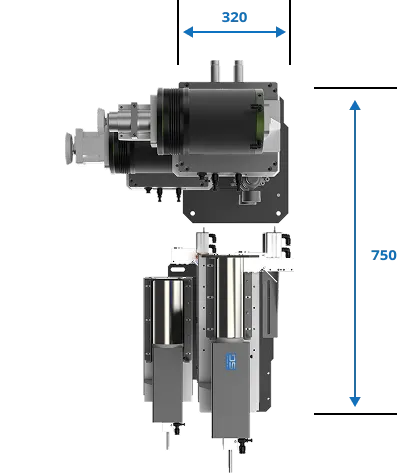

| External Dimensions | TBD |
| Abrasive Storage Capacity | 2 sheets (standard, depending on media thickness) |
| Installation Method | Installed within the RWH-3DF system |
