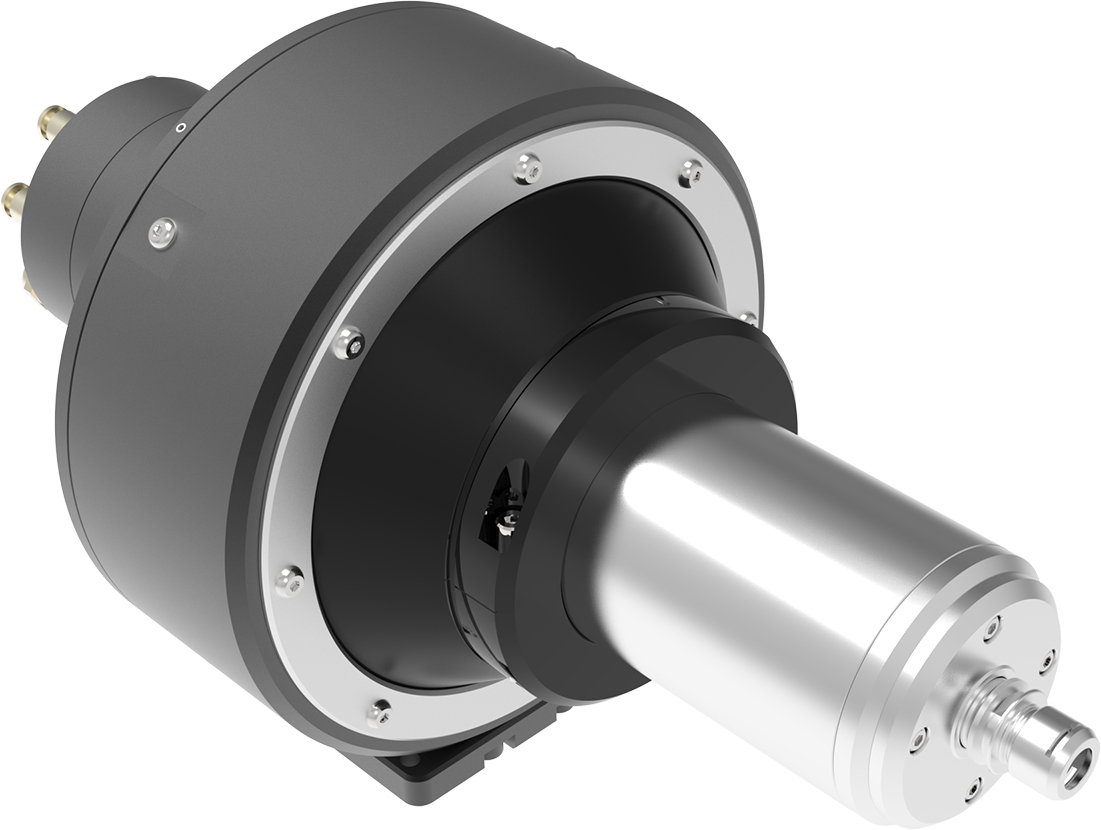

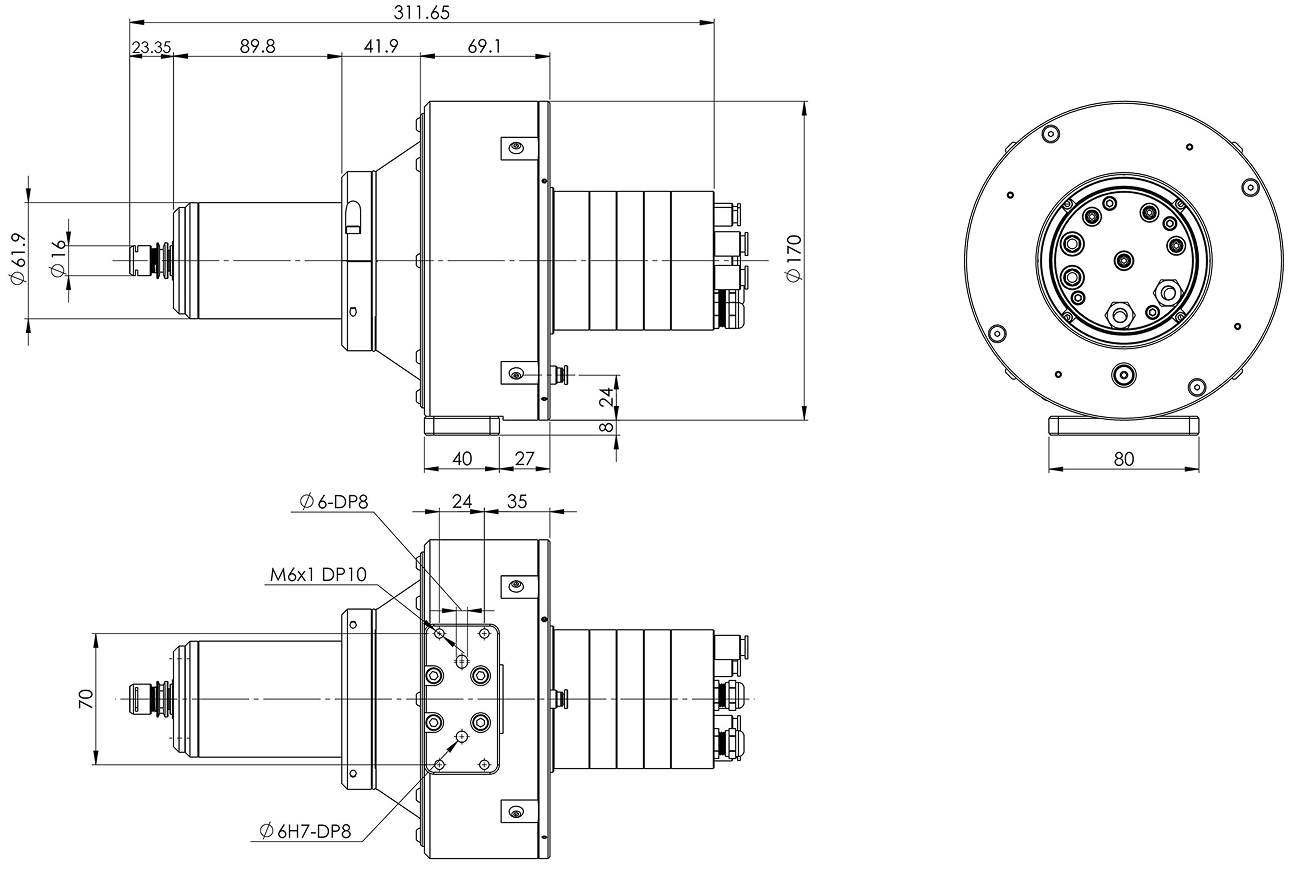

RC-ES25-60 is a high-speed electric spindle specifically designed for robotic grinding, deburring, and polishing applications. It is optimized for integration with RC Series radial compliance tools, enabling stable and consistent surface finishing performance.The spindle supports DT11 collet system, allowing flexible tool clamping and quick tool change for various abrasive applications. Due to the relatively higher weight of the RC-ES25-60 spindle, for ultra-light compliance force applications, the recommended installation orientations are:90° Upright (Vertical)、270° Overhead (Inverted).
enabling stable and consistent surface finishing performance.
Aluminum, copper, steel, cast iron, stainless steel, plastics, composite materials, wood
| Functions | Electric Spindle |
| toolTable.colletType | DT11 |
| toolTable.airSealingPressure | ≧ 0.2 Mpa |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 7-17.3 N |
| Power | 2.5 kW |
| Weight | 5.62 kg (12.38 lbs) |
| Dimensions (L x W x H) | 312 x 170 x 178 mm (12.2 x 6.6 x 7 in) |
| Speed | 60,000 RPM |
| toolTable.runout | ≦ 1 μm |
| toolTable.coolingSystem | Water Cooling (Chiller Required) |
| toolTable.coolantTemp | 25 ± 3°C |
| toolTable.coolantFlowRate | Water ≥ 1.2 / Oil ≥ 2.4 (L/min) |
| toolTable.driveSystem | VFD |
| toolTable.balanceGrade | ISO 1940 G0.4 |

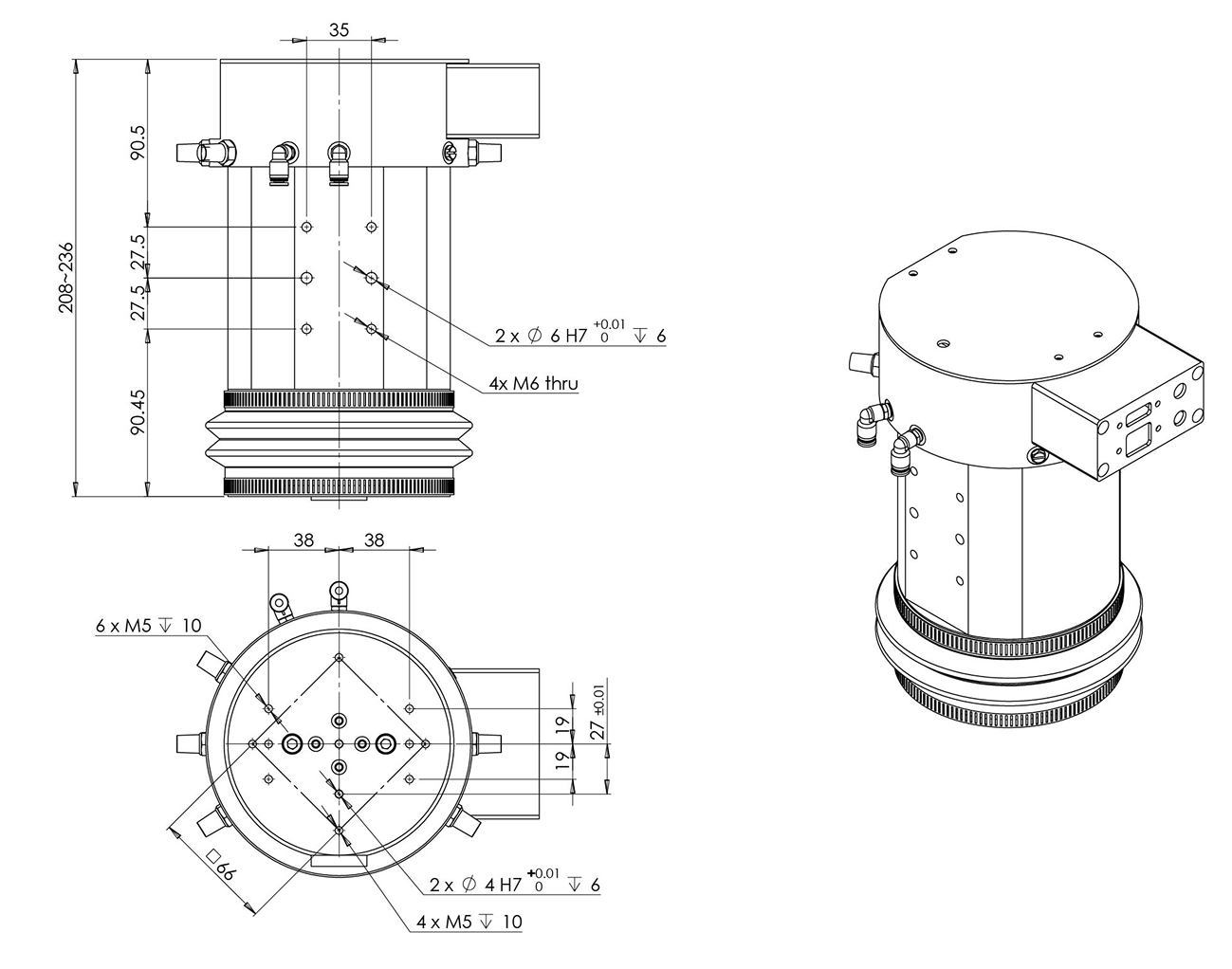

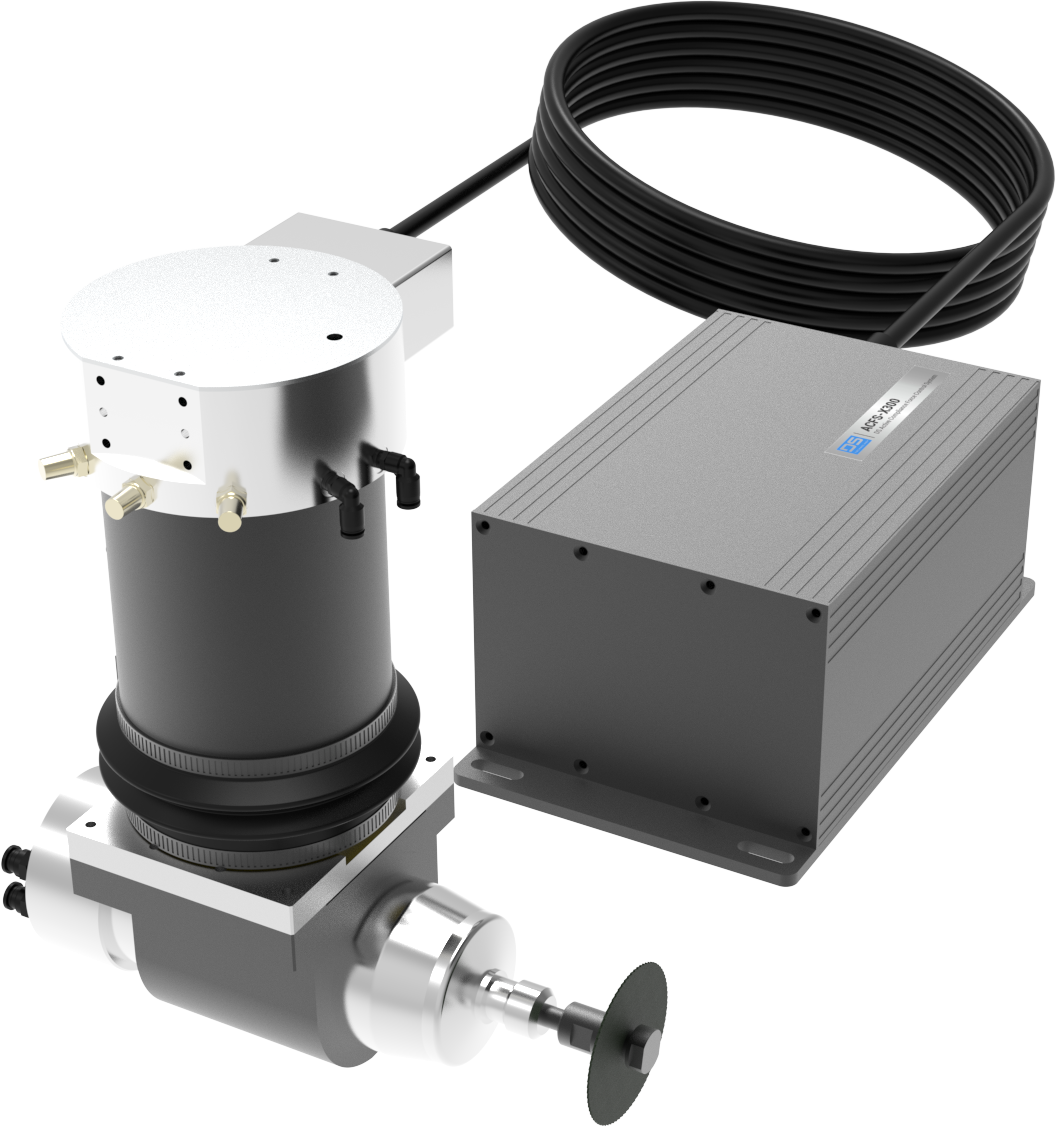

ACFS-LCZ300-ES60 is an integrated robotic finishing system combining an active compliance force controller (ACFS-X300), a linear compliance tool (LCZ300), and a high-speed electric spindle (DS-60AM). It delivers precise real-time force control for grinding, deburring, and polishing applications across high-value industries.The active compliance architecture enables dynamic force adjustment independent of part tolerance, geometry variation, or tool wear, ensuring consistent surface quality and process stability.
Optimized for High-Precision Surface Finishing
Aluminum, copper, steel, cast iron, stainless steel, plastics, composite materials, wood
| Functions | Passive Compliance to Active Force Control |
| toolTable.colletType | DT11 (Auto Change Supported) |
| toolTable.airSealingPressure | ≧ 0.2 Mpa |
| Compliant Stroke | Unidirectional 28mm |
| Compliant Force | 30-100 N |
| Power | N/A |
| Weight | 13.4 kg (29.54 lbs) |
| Dimensions (L x W x H) | 271 x 178 x 358 mm (10.6 x 7 x 14.1 in) |
| Speed | 30,000 RPM |
| toolTable.runout | ≦ 1 μm |
| toolTable.coolingSystem | Water Cooling (Chiller Required) |
| toolTable.coolantTemp | 25 ± 3°C |
| toolTable.coolantFlowRate | Water ≥ 1.2 / Oil ≥ 2.4 (L/min) |
| toolTable.driveSystem | VFD |
| toolTable.balanceGrade | ISO 1940 G0.4 |

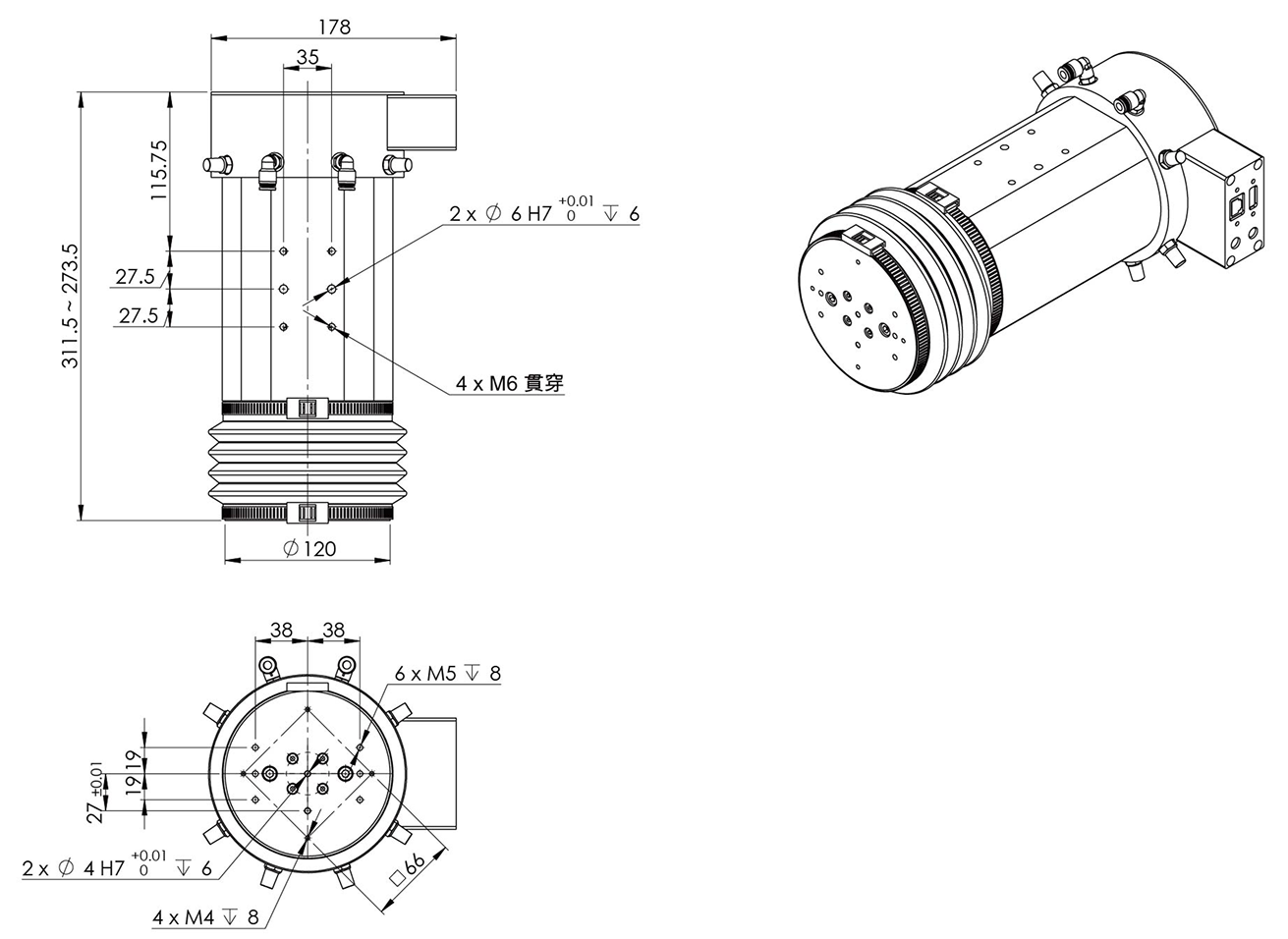

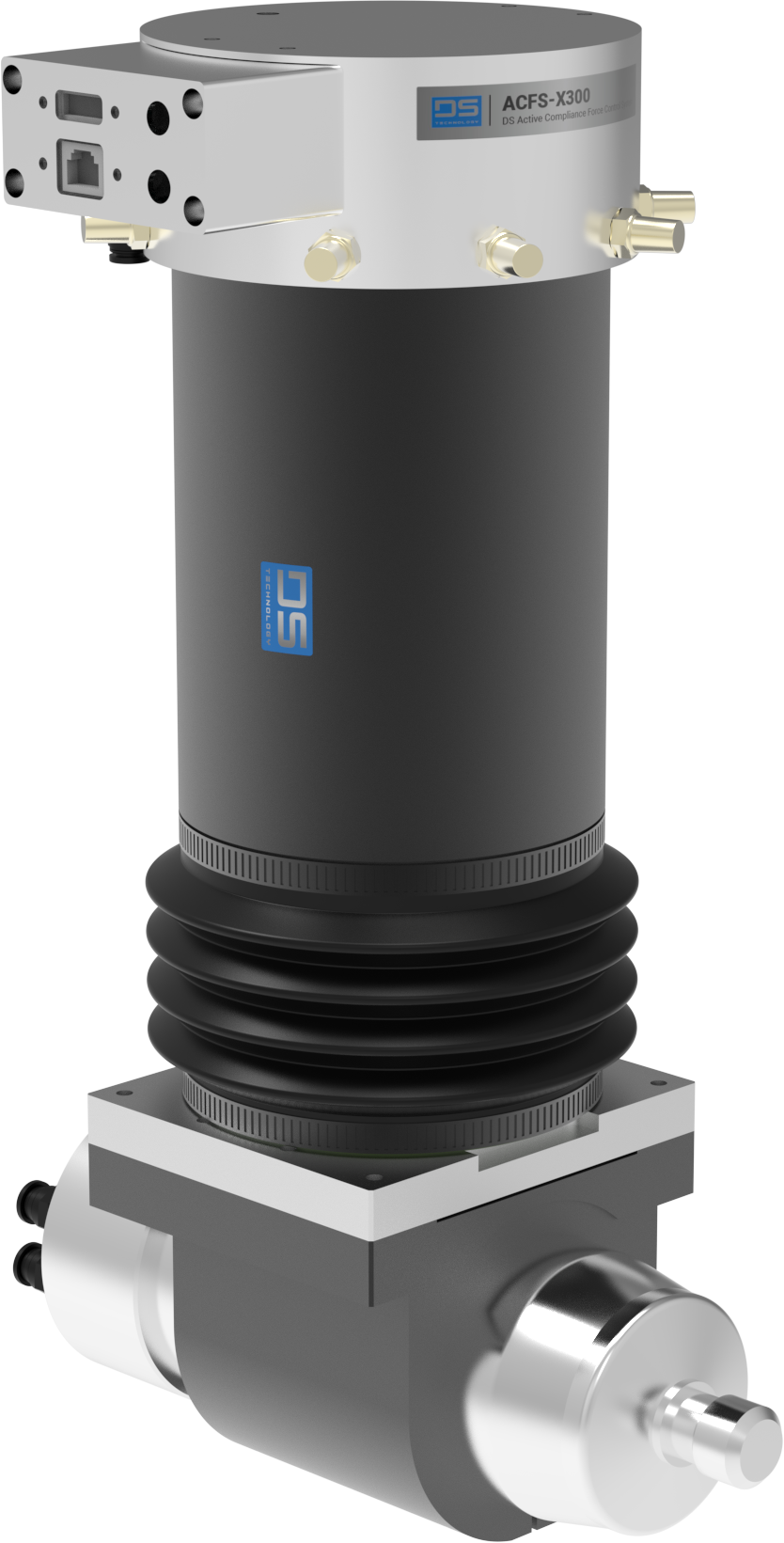

ACFS-LCZ400-ES60 is an integrated robotic finishing system combining an active compliance force controller (ACFS-X300), a linear compliance tool (LCZ400), and a high-speed electric spindle (DS-60AM). It delivers precise real-time force control for grinding, deburring, and polishing applications across high-value industries.The active compliance architecture enables dynamic force adjustment independent of part tolerance, geometry variation, or tool wear, ensuring consistent surface quality and process stability.
Optimized for High-Precision Surface Finishing
Aluminum, copper, steel, cast iron, stainless steel, plastics, composite materials, wood
| Functions | Passive Compliance to Active Force Control |
| toolTable.colletType | DT11 (Auto Change Supported) |
| toolTable.airSealingPressure | ≧ 0.2 Mpa |
| Compliant Stroke | Unidirectional 38mm |
| Compliant Force | 80-250 N |
| Power | N/A |
| Weight | 14.8 kg (32.62 lbs) |
| Dimensions (L x W x H) | 271 x 178 x 434.5 mm (10.6 x 7 x 17.1 in) |
| Speed | 30,000 RPM |
| toolTable.runout | ≦ 1 μm |
| toolTable.coolingSystem | Water Cooling (Chiller Required) |
| toolTable.coolantTemp | 25 ± 3°C |
| toolTable.coolantFlowRate | Water ≥ 1.2 / Oil ≥ 2.4 (L/min) |
| toolTable.driveSystem | VFD |
| toolTable.balanceGrade | ISO 1940 G0.4 |

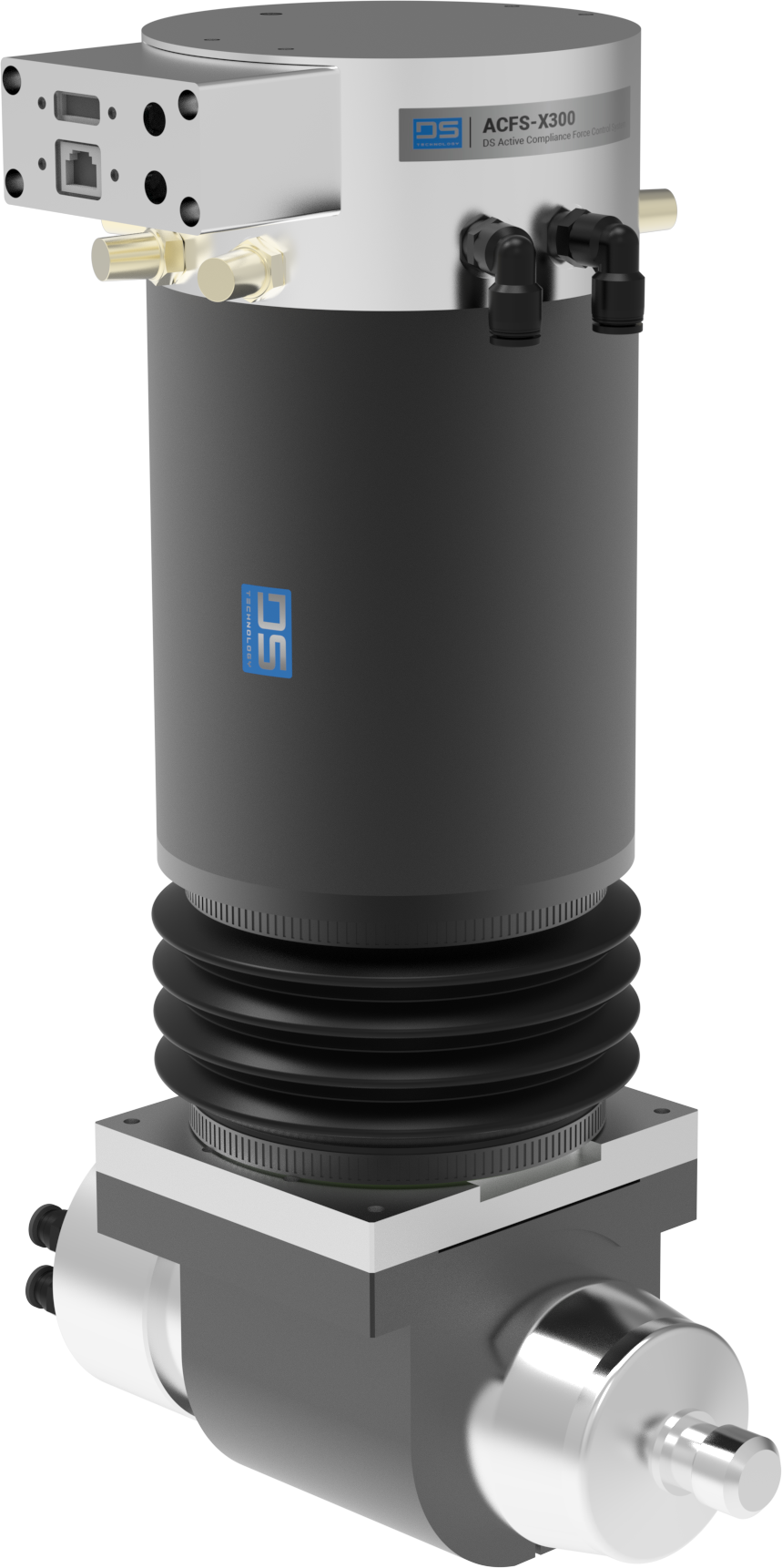

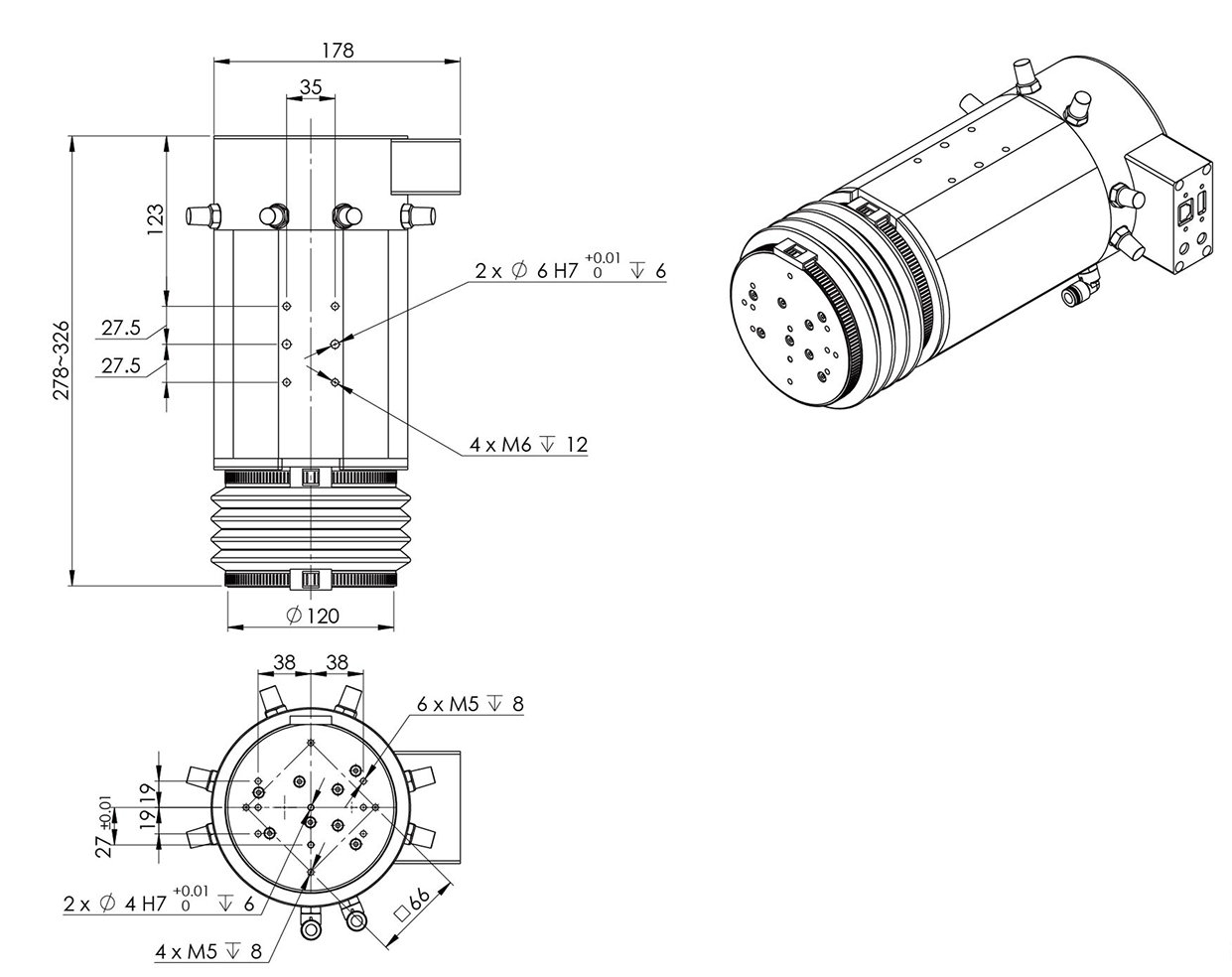

ACFS-LCZ500-ES60 is an integrated robotic finishing system combining an active compliance force controller (ACFS-X300), a linear compliance tool (LCZ500), and a high-speed electric spindle (DS-60AM). It delivers precise real-time force control for grinding, deburring, and polishing applications across high-value industries.The active compliance architecture enables dynamic force adjustment independent of part tolerance, geometry variation, or tool wear, ensuring consistent surface quality and process stability.
Optimized for High-Precision Surface Finishing
Aluminum, copper, steel, cast iron, stainless steel, plastics, composite materials, wood
| Functions | Passive Compliance to Active Force Control |
| toolTable.colletType | DT11 (Auto Change Supported) |
| toolTable.airSealingPressure | ≧ 0.2 Mpa |
| Compliant Stroke | Unidirectional 48mm |
| Compliant Force | 210-630 N |
| Power | N/A |
| Weight | 17 kg (37.4 lbs) |
| Dimensions (L x W x H) | 271 x 178 x 449 mm (10.6 x 7 x 17.6 in) |
| Speed | 30,000 RPM |
| toolTable.runout | ≦ 1 μm |
| toolTable.coolingSystem | Water Cooling (Chiller Required) |
| toolTable.coolantTemp | 25 ± 3°C |
| toolTable.coolantFlowRate | Water ≥ 1.2 / Oil ≥ 2.4 (L/min) |
| toolTable.driveSystem | VFD |
| toolTable.balanceGrade | ISO 1940 G0.4 |
