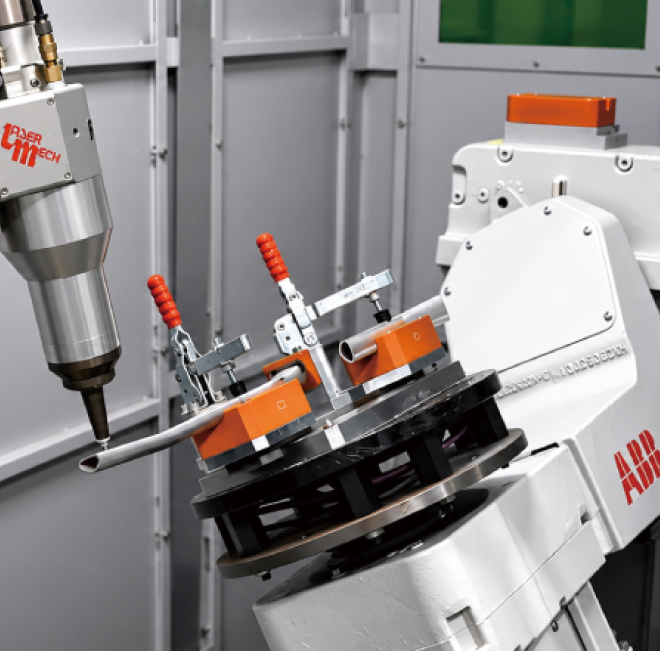

LSC-2P / LSC-2TP / LSW-2P / LSW-2TP Robotic Laser Cutting and Welding Systems are built around high-precision industrial robots, combined with DS's professional robot TCP, base coordinate, workpiece coordinate, and laser tool calibration technologies to improve the geometric consistency between offline models and actual equipment, enabling laser cutting and welding paths to be executed accurately on physical equipment.
The system can integrate Robotmaster® offline programming software to build robot paths directly from CAD/CAM data, completing pose optimization, reachability analysis, collision checking, and program output, significantly reducing on-site teaching and program correction time. Through high-precision calibration and path verification, it improves dimensional consistency, cutting quality, and process stability for round holes, contours, irregular curved surfaces, and multi-angle machining.
High-Precision Industrial Robot Selection
Selects the appropriate robot based on working range, payload, repeatability, and process requirements.
DS high-precision TCP and workstation calibration calibrates the tool center point, robot base, workpiece coordinates, and the relative position of the laser equipment.
Robotmaster® Offline Programming and Path Output
Supports CAD/CAM path generation, collision checking, pose optimization, and direct robot program output
Integrated Laser Cutting and Welding Processes
Configures the laser source, cutting head, welding head, and process parameters based on material, thickness, contour, and quality requirements
High-Precision Path Machining
Improves the precision, stability, and consistency of small-hole, contour, curved-surface, and multi-angle machining.
Combines high-precision robots, DS TCP calibration, and Robotmaster® offline programming so that digital paths accurately correspond to physical equipment.
LSC-2P
1. Highest Standard of Cutting Precision
2. Highest Cost-Performance Intelligent Laser Cutting Solution
3. Applicable to Multiple Industries, High-Performance Cutting Technology
4. Highly Intelligent & Advanced Software Integration
5. DS SmartCore Smart Manufacturing Platform
LSC-2TP
DS Technology
Competitor
Hole Size Φ8 mm
Hole Size Φ4 mm
DS Technology
Competitor
| Specification | Parameter |
| Laser Power Range | 500W - 12000W (select appropriate power based on application needs) |
| Cutting Speed | Up to 25m/min (actual speed depends on material, laser power, and cutting head configuration) |
| Maximum Cutting Thickness | 0.2mm - 20mm (depends on laser power and material properties) |
| Repeatability Precision | ±0.03mm |
| Robot Cutting Precision | ±0.3mm (actual measured value can reach ±0.1mm, with a cutting precision test report provided) |
| Memory Capacity | Robot 1GB, PC 128GB SSD (expandable) |
| Supported Communication | Network, direct PLC connection, supports remote system control |
| Data Storage Capacity | 500 sets of perforation parameters, 500 sets of path parameters, 100 sets of laser cutting paths (expandable based on hard drive capacity) |
| QR Code Reading System | LSC-2P: Dual-Station QR Code Reading, LSC-2TP: Single-Station QR Code Reading, quick access to stored programs, improving production efficiency |
| Remote Monitoring Support | Mobile & Web monitoring, equipment status, utilization rate, maintenance reminders (SmartCore Edge Box supported) |
| Smart Quick Access Feature | Supports scanning QR codes to call corresponding cutting programs and parameters, direct communication with PLC via network for quick setup |
| Supports Robotmaster Remote Transmission | Can remotely transmit path programs generated by Robotmaster to the robotic arm |
1. Automotive and Aerospace Industries
2. Metalworking and Heavy Industry
3. Consumer Electronics and 3C Industries
| Pos | Description |
|---|---|
| A | Programmed position |
| B | Mean position at program execution |
| AP | Mean distance from programmed position |
| RP | Tolerance of position B at repeated positioning |
| Pos | Description |
|---|---|
| E | Programmed path |
| D | Actual path at program execution |
| AT | Max deviation from E to average path |
| RT | Tolerance of the path at repeated program execution |
| Description | IRB 2400/10 | IRB 2400/16 |
|---|---|---|
| Pose repeatability, RP (mm) | 0.03 | 0.03 |
| Pose accuracy, APi (mm) | 0.03 | 0.03 |
| Linear path repeatability, RT (mm) | 0.11 | 0.15 |
| Linear path accuracy, AT (mm) | 0.33 | 0.41 |
| Pose stabilization time, (PSt) to within 0.4 mm of the position (s) | 0.15 | 0.22 |
Our Robotic 3D Laser Cutting System combines high precision, high performance, automation, and intelligent management suitable for industries such as automotive, aerospace, metalworking, electronics 3C, industrial equipment and offers highly competitive prices helping businesses reduce costs, increase productivity, and strengthen market competitiveness.
